AD9553 - Flexible Clock Translator

Description

The AD9553 is a phase-locked loop (PLL) based clock translator designed to address the needs of passive optical networks (PON) and base stations.

The device employs an integer-N PLL to accommodate the applicable frequency translation requirements.

Features

  • Input frequencies from 8 kHz to 710 MHz Output frequencies up to 810 MHz LVPECL and LVDS (up to 200 MHz for CMOS output) Preset pin-programmable frequency translation ratios cover popular wireline and wireless frequency.

📥 Download Datasheet

📁 Similar Datasheet

  • AD9256 - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD9256H - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD92580 - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD92580C - DIGITAL AMPLIFIER POWER STAGE (Elite Semiconductor)
  • AD9700 - Video Dispaly D/A Converter (ETC)
Other Datasheets by Analog Devices
  • AD9550 - Integer-N Clock Translator
  • AD9551 - Multiservice Clock Generator
  • AD9552 - Oscillator Frequency Up Converter
  • AD9554 - Multiservice Line Card Adaptive Clock Translator
  • AD9554-1 - Multiservice Line Card Adaptive Clock Translator
  • AD9557 - Dual Input Multiservice Line Card Adaptive Clock Translator
  • AD9558 - Quad Input Multiservice Line Card Adaptive Clock Translator
  • AD9559 - Multiservice Line Card Adaptive Clock Translator

Full PDF Text Transcription

Click to expand full text

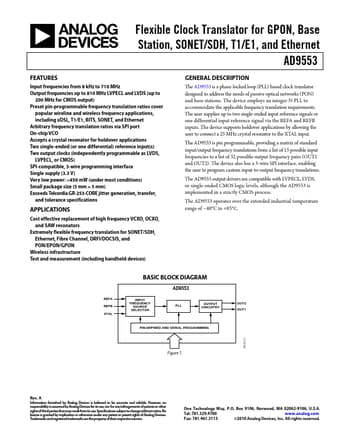

Flexible Clock Translator for GPON, Base Station, SONET/SDH, T1/E1, and Ethernet AD9553 FEATURES Input frequencies from 8 kHz to 710 MHz Output frequencies up to 810 MHz LVPECL and LVDS (up to 200 MHz for CMOS output) Preset pin-programmable frequency translation ratios cover popular wireline and wireless frequency applications, including xDSL, T1/E1, BITS, SONET, and Ethernet Arbitrary frequency translation ratios via SPI port On-chip VCO Accepts a crystal resonator for holdover applications Two single-ended (or one differential) reference input(s) Two output clocks (independently programmable as LVDS, LVPECL, or CMOS) SPI-compatible, 3-wire programming interface Single supply (3.
