AD9548 - Quad/Octal Input Network Clock Generator/Synchronizer

Description

The AD9548 provides synchronization for many systems, including synchronous optical networks (SONET/SDH).

The AD9548 generates an output clock synchronized to one of up to four differential or eight single-ended external input references.

Features

  • Supports Stratum 2 stability in holdover mode.
  • Supports reference switchover with phase build-out.
  • Supports hitless reference switchover.
  • Auto/manual holdover and reference switchover.
  • 4 pairs of reference input pins with each pair configurable as a single differential input or as 2 independent single-ended inputs.
  • Input reference frequencies from 1 Hz to 750 MHz.
  • Reference validation and frequency monitoring (1 ppm).
  • Programmable input reference switchov.

📥 Download Datasheet

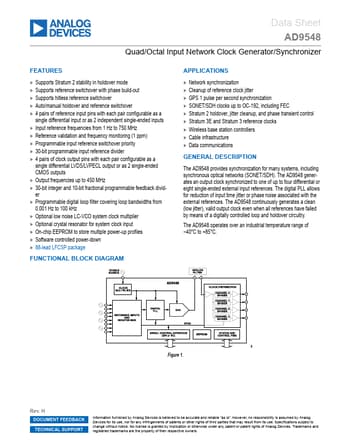

Datasheet preview – AD9548
