AD8647 - 24 MHz Rail-to-Rail Amplifiers

Analog Devices

The AD8647 by Analog Devices is a 24 MHz Rail-to-Rail Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

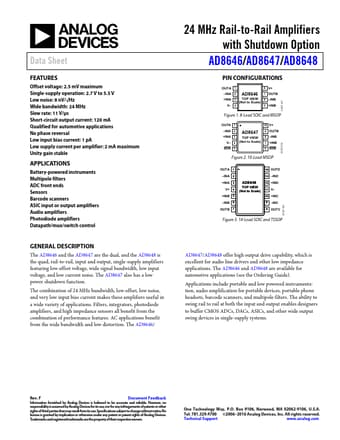

AD8647 24 MHz Rail-to-Rail Amplifiers by Analog Devices - Datasheet Preview — Official preview page of the **AD8647** 24 MHz Rail-to-Rail Amplifiers datasheet (Analog Devices).

Datasheet Details

Part number	AD8647
Manufacturer	Analog Devices
File Size	533.84 KB
Description	24 MHz Rail-to-Rail Amplifiers
Datasheet	AD8647_AnalogDevices.pdf
Additional preview pages of the AD8647 datasheet.

AD8647 Product details

Description

The AD8646 and the AD8647 are the dual, and the AD8648 is the quad, rail-to-rail, input and output, single-supply amplifiers featuring low offset voltage, wide signal bandwidth, low input voltage, and low current noise.

Features

Offset voltage: 2.5 mV maximum Single-supply operation: 2.7 V to 5.5 V Low noise: 8 nV/√Hz Wide bandwidth: 24 MHz Slew rate: 11 V/μs Short-circuit output current: 120 mA Qualified for automotive.
