AD8024 - Quad 350MHz 24V Amplifier

Analog Devices

📥 Download Datasheet

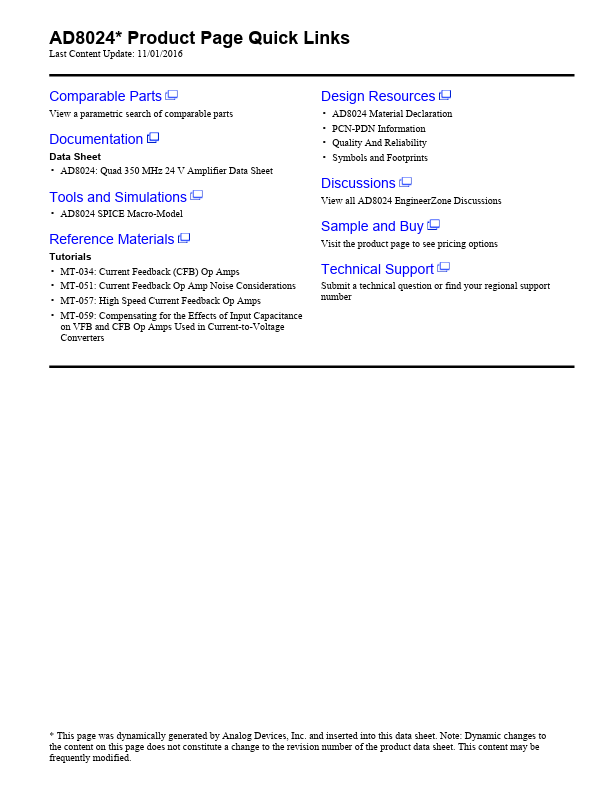

AD8024 Datasheet Preview — Preview of AD8024 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AD8024
Manufacturer	Analog Devices ↗
File Size	254.13 KB
Description	Quad 350MHz 24V Amplifier
Datasheet	AD8024_AnalogDevices.pdf

AD8024 Product details

Description

The AD8024 is a low settling time, high-speed, high output voltage quad current feedback operational amplifier.

Features

Quad High-Speed Current Feedback Amplifier with Disable.
3 dB Bandwidth 350 MHz @ G = +1 Slew Rate 2400 V/␮s, VS = ؎12 V Drives High Capacitive Loads Settling Time to 0.1% in 35 ns; 300 pF Load, 6 V Step Settling Time to 0.1% in 18 ns; 5 pF Load, 2 V Step Low Power Operates on +5 V to ؎12 V (24 V) 4 mA/Amplifier Supply Current Excellent Video Specs (RL = 150 ⍀, G = +2) Gain Flatness 0.1 dB to 70 MHz 0.04% Differential Gain 0.09؇ Differential Phase Crosstalk.
58 dB @ 5 MHz THD.
