AD7908 8-/10-/12-Bit ADCs

AD7908 Description

Data Sheet 8-Channel, 1 MSPS, 8-/10-/12-Bit ADCs with Sequencer in 20-Lead TSSOP AD7908/AD7918/AD7928 .
The AD7908/AD7918/AD7928 are, respectively, 8-bit, 10-bit, and 12-bit, high speed, low power, 8-channel, successive approximation ADCs.

AD7908 Features

* Fast throughput rate: 1 MSPS Specified for AVDD of 2.7 V to 5.25 V Low power 6.0 mW max at 1 MSPS with 3 V supply 13.5 mW max at 1 MSPS with 5 V supply Eight (single-ended) inputs with sequencer Wide input bandwidth AD7928, 70 dB min SINAD at 50 kHz input frequency Flexible power/serial clock speed

📥 Download Datasheet

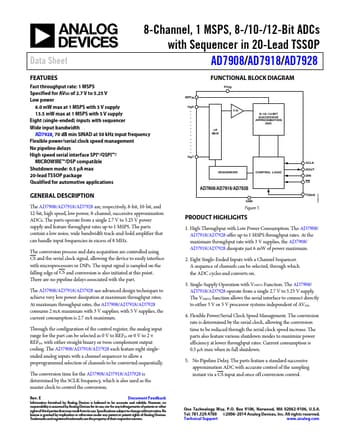

Preview of AD7908 PDF
datasheet Preview Page 2 datasheet Preview Page 3
