AD7451 - ADC

Analog Devices

📥 Download Datasheet

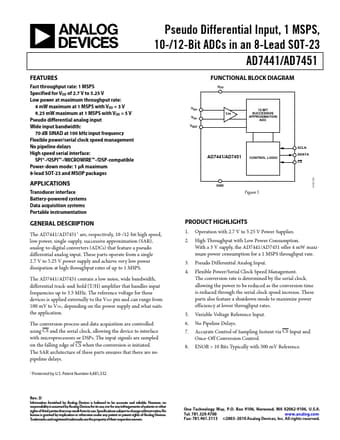

AD7451 Datasheet Preview — Preview of AD7451 PDF

Datasheet Details

Part number	AD7451
Manufacturer	Analog Devices
File Size	482.80 KB
Description	ADC
Datasheet	AD7451-AnalogDevices.pdf

AD7451 Product details

Description

Pseudo Differential, 1MSPS, 12- & 10-Bit ADCs in 8-lead SOT-23 AD7451/AD7441 FUNCTIONAL BLOCK DIAGRAM VDD VIN+ VINVREF T/H 12-BIT SUCCESSIVE APPROXIMATION ADC SCLK AD7451/ AD7441 CONTROL LOGIC SDATA +5 GND The AD7451/AD7441 are respectively 12- and 10-bit, high speed, low power, successive-approximation (SAR) analog-to-digital converters that feature a pseudo differential analog input.These parts operate from a single 2.7 V to 5.25 V power supply and feature throughput rates up to 1MS

Features

Fast Throughput Rate: 1MSPS Specified for VDD of 2.7 V to 5.25 V Low Power at max Throughput Rate: 3.75 mW typ at 1MSPS with VDD = 3 V 9 mW typ at 1MSPS with VDD = 5 V Pseudo Differential Analog Input Wide Input Bandwidth: 70dB SINAD at 300kHz Input Frequency Flexible Power/Serial Clock Speed Management No Pipeline Delays High Speed Serial Interface - SPI TM /QSPI TM /.
