AD73322 - Low Cost/ Low Power CMOS General-Purpose Dual Analog Front End

Analog Devices

📥 Download Datasheet

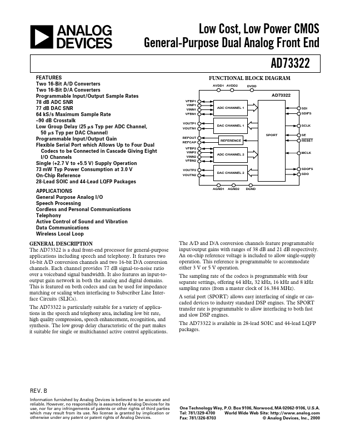

AD73322 Datasheet Preview — Preview of AD73322 PDF

Datasheet Details

Part number	AD73322
Manufacturer	Analog Devices
File Size	386.88 KB
Description	Low Cost/ Low Power CMOS General-Purpose Dual Analog Front End
Datasheet	AD73322_AnalogDevices.pdf

AD73322 Product details

Description

AD73322 VFBP1 VINP1 VINN1 VFBN1 VOUTP1 VOUTN1 REFOUT REFCAP VFBP2 VINP2 VINN2 VFBN2 VOUTP2 VOUTN2 ADC CHANNEL 1 SDI SDIFS DAC CHANNEL 1 SPORT REFERENCE SCLK SE RESET ADC CHANNEL 2 MCLK SDOFS DAC CHANNEL 2 SDO AGND1 AGND2 DGND The AD73322 is a dual front-end processor for general-purpose applications including speech and telephony.It

Features

Two 16-Bit A/D Converters Two 16-Bit D/A Converters Programmable Input/Output Sample Rates 78 dB ADC SNR 77 dB DAC SNR 64 kS/s Maximum Sample Rate.
90 dB Crosstalk Low Group Delay (25 ␮s Typ per ADC Channel, 50 ␮s Typ per DAC Channel) Programmable Input/Output Gain Flexible Serial Port which Allows Up to Four Dual Codecs to be Connected in Cascade Giving Eight I/O Channels Single (+2.7 V to +5.5 V) Supply Operation 73 mW Typ Power Consumption at 3.0 V On-Chip Reference 28-Lead SOIC and 4.
