AD7328 - 12-Bit Plus Sign ADC

Description

The AD7328 1 is an 8-channel, 12-bit plus sign, successive approximation ADC designed on the iCMOS (industrial CMOS) process.

iCMOS is a process combining high voltage silicon with submicron CMOS and complementary bipolar technologies.

Features

  • 12-bit plus sign SAR ADC True bipolar input ranges Software-selectable input ranges ±10 V, ±5 V, ±2.5 V, 0 V to +10 V 1 MSPS throughput rate Eight analog input channels with channel sequencer Single-ended, true differential, and pseudo differential analog input capability High analog input impedance Low power: 21 mW Temperature indicator Full power signal bandwidth: 22 MHz Internal 2.5 V reference High speed serial interface Power-down modes 20-lead TSSOP package iCMOS™ process technology FUNCT.

📥 Download Datasheet

📁 Similar Datasheet

  • AD7328 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7325 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7315 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7318 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7330 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7333 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7336 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7344 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7350 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD73XX - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
Other Datasheets by Analog Devices
  • AD7321 - 12-Bit Plus Sign ADC
  • AD7322 - 12-Bit Plus Sign ADC
  • AD7323 - 12-Bit Plus Sign ADC
  • AD7324 - 12-Bit Plus Sign ADC
  • AD7327 - 12-Bit Plus Sign ADC
  • AD7329 - 12-Bit Plus Sign ADC
  • AD7302 - 2.7 V to 5.5 V/ Parallel Input Dual Voltage Output 8-Bit DAC
  • AD7303 - +2.7 V to +5.5 V/ Serial Input/ Dual Voltage Output 8-Bit DAC

Full PDF Text Transcription

Click to expand full text

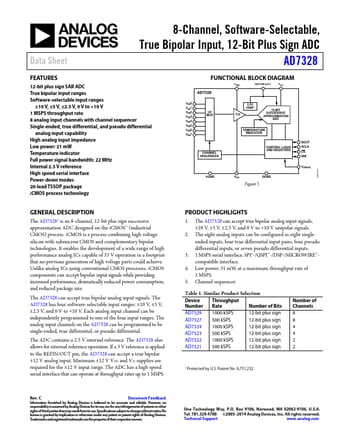

www.DataSheet4U.com 8-Channel, Software-Selectable True Bipolar Input, 12-Bit Plus Sign ADC AD7328 FEATURES 12-bit plus sign SAR ADC True bipolar input ranges Software-selectable input ranges ±10 V, ±5 V, ±2.5 V, 0 V to +10 V 1 MSPS throughput rate Eight analog input channels with channel sequencer Single-ended, true differential, and pseudo differential analog input capability High analog input impedance Low power: 21 mW Temperature indicator Full power signal bandwidth: 22 MHz Internal 2.5 V reference High speed serial interface Power-down modes 20-lead TSSOP package iCMOS™ process technology FUNCTIONAL BLOCK DIAGRAM VDD REFIN/OUT VCC AD7328 VIN0 VIN1 VIN2 VIN3 VIN4 VIN5 VIN6 VIN7 I/P MUX T/H 2.
