AD7323 - 12-Bit Plus Sign ADC

Description

The AD73231 is a 4-channel, 12-bit plus sign successive approximation analog-to-digital converter (ADC) designed on the iCMOS™ (industrial CMOS) p

Features

  • 12-bit plus sign SAR ADC True bipolar input ranges Software-selectable input ranges ±10 V, ±5 V, ±2.5 V, 0 V to +10 V 500 kSPS throughput rate Four analog input channels with channel sequencer Single-ended, true differential, and pseudo differential analog input capability High analog input impedance Low power: 18 mW Full power signal bandwidth: 22 MHz Internal 2.5 V reference High speed serial interface Power-down modes 16-lead TSSOP package iCMOS process technology.

📥 Download Datasheet

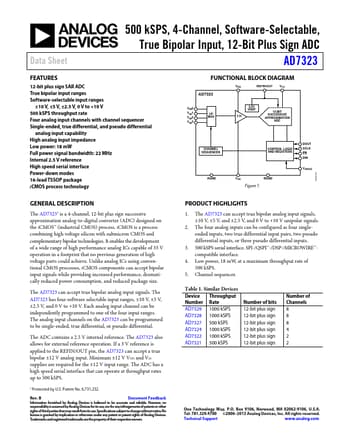

Datasheet preview – AD7323

Datasheet Details

Part number AD7323
Manufacturer Analog Devices
File Size 707.99 KB
Description 12-Bit Plus Sign ADC
Datasheet download datasheet AD7323 Datasheet
Additional preview pages of the AD7323 datasheet.

📁 Similar Datasheet

  • AD7325 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7328 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7315 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7318 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7330 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7333 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7336 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7344 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD7350 - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
  • AD73XX - Low Quiescent Current Low Dropout CMOS Voltage Regulator (Advanced Corporation Limited)
Other Datasheets by Analog Devices
  • AD7321 - 12-Bit Plus Sign ADC
  • AD7322 - 12-Bit Plus Sign ADC
  • AD7324 - 12-Bit Plus Sign ADC
  • AD7327 - 12-Bit Plus Sign ADC
  • AD7328 - 12-Bit Plus Sign ADC
  • AD7329 - 12-Bit Plus Sign ADC
  • AD7302 - 2.7 V to 5.5 V/ Parallel Input Dual Voltage Output 8-Bit DAC
  • AD7303 - +2.7 V to +5.5 V/ Serial Input/ Dual Voltage Output 8-Bit DAC

Full PDF Text Transcription

Click to expand full text
Data Sheet 500 kSPS, 4-Channel, Software-Selectable, True Bipolar Input, 12-Bit Plus Sign ADC AD7323 FEATURES 12-bit plus sign SAR ADC True bipolar input ranges Software-selectable input ranges ±10 V, ±5 V, ±2.5 V, 0 V to +10 V 500 kSPS throughput rate Four analog input channels with channel sequencer Single-ended, true differential, and pseudo differential analog input capability High analog input impedance Low power: 18 mW Full power signal bandwidth: 22 MHz Internal 2.5 V reference High speed serial interface Power-down modes 16-lead TSSOP package iCMOS process technology FUNCTIONAL BLOCK DIAGRAM VDD REFIN/OUT VCC AD7323 VIN0 VIN1 VIN2 VIN3 I/P MUX 2.5V VREF T/H 13-BIT SUCCESSIVE APPROXIMATION ADC CHANNEL SEQUENCER AGND CONTROL LOGIC AND REGISTERS VSS DGND Figure 1.
