AD7303 - +2.7 V to +5.5 V/ Serial Input/ Dual Voltage Output 8-Bit DAC

Analog Devices

📥 Download Datasheet

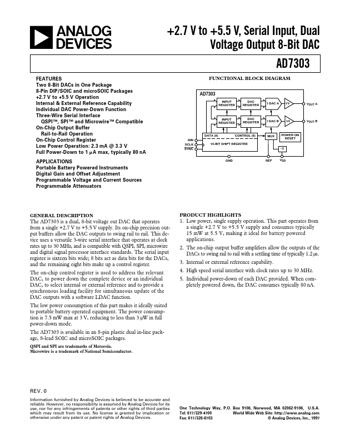

AD7303 Datasheet Preview — Preview of AD7303 PDF

Datasheet Details

Part number	AD7303
Manufacturer	Analog Devices
File Size	361.17 KB
Description	+2.7 V to +5.5 V/ Serial Input/ Dual Voltage Output 8-Bit DAC
Datasheet	AD7303_AnalogDevices.pdf

AD7303 Product details

Description

PRODUCT HIGHLIGHTS The AD7303 is a dual, 8-bit voltage out DAC that operates from a single +2.7 V to +5.5 V supply.Its on-chip precision output buffers allow the DAC outputs to swing rail to rail.This device uses a versatile 3-wire serial interface that operates at clock rates up to 30 MHz, and is compatible with QSPI, SPI, microwire and digital signal processor interface standards.The serial input register is sixteen bits wide; 8 bits act as data bits for the DACs, and the remaining eight

Features

Two 8-Bit DACs in One Package 8-Pin DIP/SOIC and microSOIC Packages +2.7 V to +5.5 V Operation Internal & External Reference Capability Individual DAC Power-Down Function Three-Wire Serial Interface QSPI™, SPI™ and Microwire™ Compatible On-Chip Output Buffer Rail-to-Rail Operation On-Chip Control Register Low Power Operation: 2.3 mA @ 3.3 V Full Power-Down to 1 ␮ A max, typically 80 nA.
