AD5660, AD5620 12-/14-/16-Bit nanoDAC

AD5660 Description

Data Sheet Single, 12-/14-/16-Bit nanoDAC with 5 ppm/°C On-Chip Reference in SOT-23 AD5620/AD5640/AD5660 .

AD5660 Features

* Low power, single nanoDACs AD5660: 16 bits AD5640: 14 bits AD5620: 12 bits 12-bit accuracy guaranteed On-chip, 1.25 V/2.5 V, 5 ppm/°C reference Tiny 8-lead SOT-23, MSOP, and LFCSP packages Power-down to 480 nA @ 5 V, 200 nA @ 3 V 3 V/5 V single power supply Guaranteed 16-bit monotonic by design Powe

AD5660 Applications

* Process control Data acquisition systems Portable battery-powered instruments Digital gain and offset adjustment Programmable voltage and current sources Programmable attenuators PRODUCT HIGHLIGHTS 1. 12-/14-/16-bit nanoDAC
* 12-bit accuracy guaranteed. 2. On-chip, 1.25 V/2.5 V, 5 ppm/°C refe

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AD5660, AD5620. Please refer to the document for exact specifications by model.

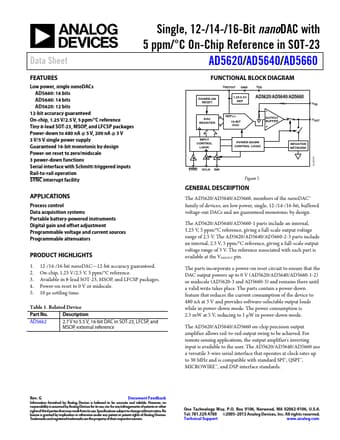

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AD5660, AD5620
Manufacturer
Analog Devices ↗
File Size
647.09 KB
Datasheet
AD5620_AnalogDevices.pdf
Description
12-/14-/16-Bit nanoDAC
Note
This datasheet PDF includes multiple part numbers: AD5660, AD5620.
Please refer to the document for exact specifications by model.
