AD53509 - High-Performance Driver/Comparator Active Load on a Single Chip

Analog Devices

The AD53509 by Analog Devices is a High-Performance Driver/Comparator Active Load on a Single Chip. Below is the official datasheet preview.

📥 Download Datasheet

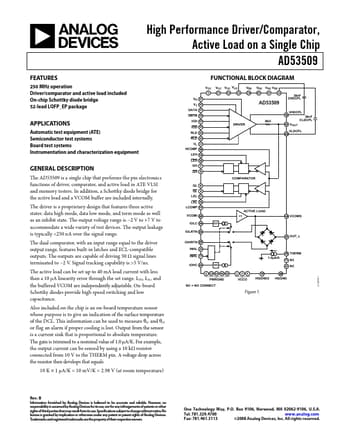

AD53509 High-Performance Driver/Comparator Active Load on a Single Chip by Analog Devices - Datasheet Preview — Official preview page of the **AD53509** High-Performance Driver/Comparator Active Load on a Single Chip datasheet (Analog Devices).

Datasheet Details

Part number	AD53509
Manufacturer	Analog Devices
File Size	220.60 KB
Description	High-Performance Driver/Comparator Active Load on a Single Chip
Datasheet	AD53509_AnalogDevices.pdf
Additional preview pages of the AD53509 datasheet.

AD53509 Product details

Description

The AD53509 is a single chip that performs the pin electronics functions of driver, comparator, and active load in ATE VLSI and memory testers.

Features

250 MHz operation Driver/comparator and active load included On-chip Schottky diode bridge 52-lead LQFP_EP package.
