AD5025 - DAC SPI Interface

Name: AD5025
SKU: AD5025-592690

Analog Devices

📥 Download Datasheet

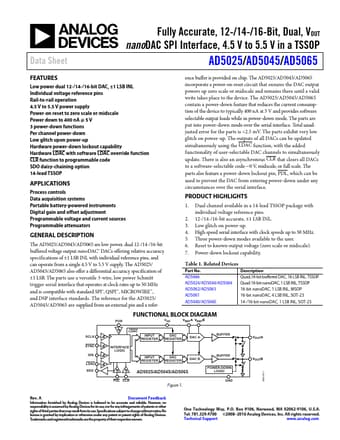

AD5025 Datasheet Preview — Preview of AD5025 PDF

Datasheet Details

Part number	AD5025
Manufacturer	Analog Devices
File Size	1.29 MB
Description	DAC SPI Interface
Datasheet	AD5025_AnalogDevices.pdf

AD5025 Product details

Description

The AD5025/AD5045/AD5065 are low power, dual 12-/14-/16-bit buffered voltage output nanoDAC® DACs offering relative accuracy specifications of ±1 LSB INL with individual reference pins, and can operate from a single 4.5 V to 5.5 V supply.

Features

Low power dual 12-/14-/16-bit DAC, ±1 LSB INL Individual voltage reference pins Rail-to-rail operation 4.5 V to 5.5 V power supply Power-on reset to zero scale or midscale Power down to 400 nA @ 5 V 3 power-down functions Per channel power-down Low glitch upon power-up Hardware power-down lockout capability Hardware LDAC with software LDAC override function CLR function to programmable code SDO daisy-chaining option 14-lead TSSOP.
