AD2410W - Automotive Audio Bus A2B Transceiver

Analog Devices

The AD2410W by Analog Devices is a Automotive Audio Bus A2B Transceiver. Below is the official datasheet preview.

Datasheet Details

Part number	AD2410W
Manufacturer	Analog Devices
File Size	169.45 KB
Description	Automotive Audio Bus A2B Transceiver
Datasheet	AD2410W-AnalogDevices.pdf

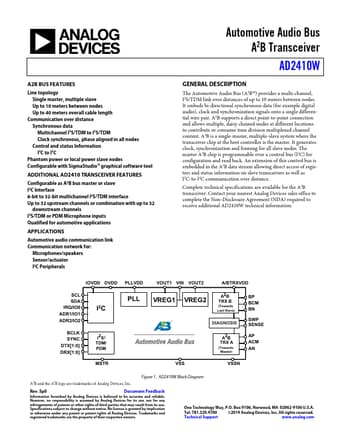

Additional preview pages of the AD2410W datasheet.

The Automotive Audio Bus (A2BTM) provides a multi-channel, I2S/TDM link over distances of up to 10 meters between nodes.

Line topology Single master, multiple slave Up to 10 meters between nodes Up to 40 meters overall cable length Communication over distance Synchronous data Multichannel I2S/TDM to I2S/TDM Clock synchronous, phase aligned in all nodes Control and status Information I2C to I2C Phantom power or local power slave nodes Configurable with SigmaStudioTM graphical software tool.
