AP1603 - Step-Up DC/DC Converter

Description

The AP1603 is a high efficiency step-up DC/DC converter for applications using 1 to 2 NiMH battery cells.

Only three external components are required to deliver a fixed output voltage of 3.3V.

The AP1603 starts up from less than 0.9V input with 1mA load.

Features

  • s -A Guaranteed Start-Up from less than 0.9 V. -High Efficiency. -Low Quiescent Current. -Less Number of External Components needed. -Low Ripple and Low Noise. -Space Saving Pb-Free Packages: SOT23-6.
  • General.

📥 Download Datasheet

Datasheet Details

Part number AP1603
Manufacturer Anachip
File Size 170.09 KB
Description Step-Up DC/DC Converter
Datasheet download datasheet AP1603 Datasheet

📁 Similar Datasheet

  • AP1603 - STEP-UP DC/DC CONVERTER (Diodes Incorporated)
  • AP160 - 8-BIT MICROCONTROLLER WITH 8KB OTP (AMIC Technology)
  • AP1601 - STEP-UP DC/DC CONVERTER (Diodes)
  • AP1604A - PWM/PFM DUAL MODE STEP-DOWN DC/DC CONVERTER (Diodes Incorporated)
  • AP1605 - PWM/PFM DUAL-MODE STEP-DOWN SWITCHING REGULATOR (Diodes Incorporated)
  • AP1608CGCK - SMD CHIP LED LAMP (Kingbright Corporation)
  • AP1608EC - SMD CHIP LED LAMP (Kingbright Corporation)
  • AP1608F3C - INFRA-RED EMITTING DIODE (Kingbright Corporation)
  • AP1608MBC - SMD CHIP LED LAMP (Kingbright Corporation)
  • AP1608P1C - PHOTOTRANSISTOR (Kingbright Corporation)
Other Datasheets by Anachip
  • AP1604 - PWM/PFM Dual Mode Step-down DC/DC Converter
  • AP1605 - PWM/PFM Dual-mode Step-Down Switching Regulator
  • AP1609 - PWM/PFM Dual Mode Step-up DC/DC Converter
  • AP1623 - PWM Control Step-Down Switching Regulator-Converter
  • AP1624 - PWM/PFM Dual Mode Step-up DC/DC Controller
  • AP1625 - PWM/PFM Dual Mode Step-down DC/DC Controller
  • AP1627 - High-Efficiency Inverting Controller
  • AP1084 - 5A Low Dropout Positive Adjustable or Fixed-Mode Regulator

Full PDF Text Transcription

Click to expand full text

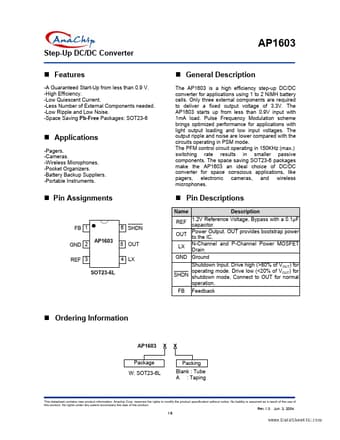

AP1603 Step-Up DC/DC Converter „ Features -A Guaranteed Start-Up from less than 0.9 V. -High Efficiency. -Low Quiescent Current. -Less Number of External Components needed. -Low Ripple and Low Noise. -Space Saving Pb-Free Packages: SOT23-6 „ General Description The AP1603 is a high efficiency step-up DC/DC converter for applications using 1 to 2 NiMH battery cells. Only three external components are required to deliver a fixed output voltage of 3.3V. The AP1603 starts up from less than 0.9V input with 1mA load. Pulse Frequency Modulation scheme brings optimized performance for applications with light output loading and low input voltages. The output ripple and noise are lower compared with the circuits operating in PSM mode. The PFM control circuit operating in 150KHz (max.
