AP1537 - PWM Control 3A Step-Down Converter

AP1537 Description

AP1537 PWM Control 3A Step-Down Converter * .
AP1537 consists of step-down switching regulator with PWM control.

AP1537 Features

* - Input voltage: 3.6V to 18V. - Output voltage: 0.8V to VCC. - Duty ratio: 0% to 100% PWM control - Oscillation frequency: 500KHz typ. - Soft-start, Current Limit, Enable function - Thermal Shutdown function - Built-in internal SW P-channel MOS - Low ESR output capacitor (Multi-layer chip capacitor

AP1537 Applications

* - PC Motherboard - LCD Monitor - Graphic Card - DVD-Video Player - Telecom Equipment - ADSL Modem - Printer and other Peripheral Equipment - Microprocessor core supply - Networking power supply
* Pin Assignments ) FB 1 EN 2 AP1537 Comp 3 VCC 4 6 5 Output Output 8 7 Vss Vss
* Pin De

📥 Download Datasheet

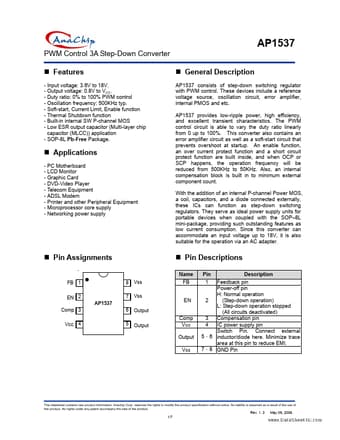

Preview of AP1537 PDF
