AM24LC21 - 1K-bits (128 x 8) 2-Wire Serial EEPROM

AM24LC21 Description

Dual Mode, 1K-bits (128 x 8) 2-Wire Serial EEPROM AM24LC21 (Preliminary) .
The AM24LC21 is a 128 x 8-bit dual-mode Electrically Erasable PROM.

AM24LC21 Features

* - Single supply with operation down to 2.5V - Completely implements DDC1/DDC2 interface for monitor identification, including recovery to DDC1 - Low power CMOS technology - 1 mA typical active current - 10 uA standby current typical at 5.5V - 2-wire serial interface bus, I2C compatible - 100Khz (2.5

AM24LC21 Applications

* requiring storage and serial transmission of configuration and control information. Two modes of operation have been implemented:

📥 Download Datasheet

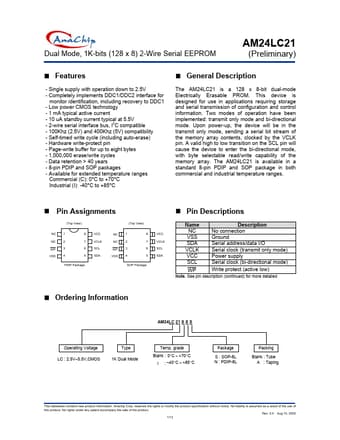

Preview of AM24LC21 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AM24LC21
Manufacturer
Anachip
File Size
216.87 KB
Datasheet
AM24LC21-Anachip.pdf
Description
1K-bits (128 x 8) 2-Wire Serial EEPROM
