AH286 - Hall-Effect Smart Fan Motor Controller

AH286 Description

AH286 Hall-Effect Smart Fan Motor Controller * .
AH286 is a monolithic fan motor controller with Hall sensor’s capability.

AH286 Features

* - On chip Hall sensor - Rotor-locked shutdown - Automatically restart - Rotor-state detection (RD) output - Buil t-in Zener protection for output driver - Operating voltage: 3.8V~20 V - Output current: IO(AVE) = 500mA for SIP-5/SOT89-5 - Output current: IO(AVE) = 400mA for SOT23-5 - Package: SIP-5L,

📥 Download Datasheet

Preview of AH286 PDF

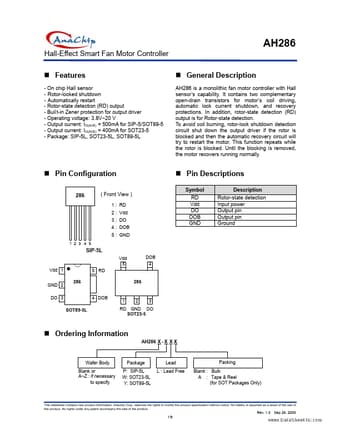

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AH286
Manufacturer
Anachip
File Size
204.25 KB
Datasheet
AH286_Anachip.pdf
Description
Hall-Effect Smart Fan Motor Controller
