AM-800480L6TMQW-00H LCD

Ampire

AM-800480L6TMQW-00H Description

SPECIFICATIONS FOR LCD MODULE CUSTOMER CUSTOMER PART NO.AMPIRE PART NO.AM-800480L6TMQW-00H APPROVED BY DATE Approved For Specifications Approved .

AM-800480L6TMQW-00H Features

* (1) Construction : a-Si TFT-LCD with driving system, White LED Backlight (2) LCD type : Transmissive , Normally White (3) Number of the Colors : 16.7M colors (R,G,B 8bit digital each) (4) RGB Interface 45 pin. (5) LCD Power Supply Voltage : 3.3V single power input, built-in power supply circuit. (6)

📥 Download Datasheet

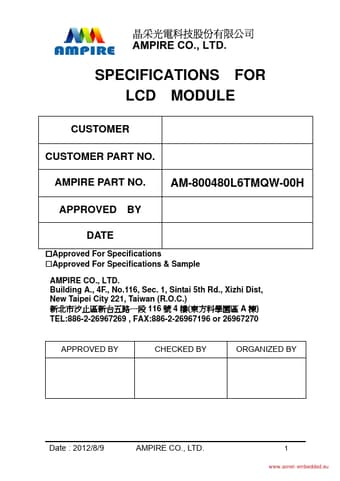

AM-800480L6TMQW-00H Datasheet Preview — Preview of AM-800480L6TMQW-00H PDF

Datasheet Details

Part number: AM-800480L6TMQW-00H
Manufacturer: Ampire
File Size: 505.39 KB
Datasheet: AM-800480L6TMQW-00H-Ampire.pdf
Description: LCD
