MBR340NG - 3.0A Leaded Type Schottky Barrier Rectifiers

Download the MBR340NG datasheet PDF. This datasheet also covers the MBR320NG variant, as both devices belong to the same 3.0a leaded type schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Axial lead type devices for through hole design.
  • Low power loss, high efficiency.
  • High current capability, low forward voltage drop.
  • High surge capability.
  • Guardring for overvoltage protection.
  • Ultra high-speed switching.
  • Silicon epitaxial planar chip, metal silicon junction.
  • Lead-free parts meet environmental standards of MIL-STD-19500 /228.
  • Suffix "-H" indicates Halogen free parts, ex. MBR320NG-H. Package.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBR320NG-AmericanFirstSemiconductor.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBR340NG
Manufacturer American First Semiconductor
File Size 510.59 KB
Description 3.0A Leaded Type Schottky Barrier Rectifiers
Datasheet download datasheet MBR340NG Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR340 SCHOTTKY BARRIER DIODE JILIN SINO
MBR340 Axial Lead Rectifiers Motorola
MBR340 SCHOTTKY RECTIFIER International Rectifier
MBR340 Axial Lead Rectifier ON Semiconductor
MBR340 Schottky Barrier Rectifier Kexin

Other Datasheets by American First Semiconductor

Part Number Description
MBR30100CTG Schottky Barrier Rectifier
MBR30100PTG 30.0 AMPS. Schottky Barrier Rectifiers
MBR30150CTG Schottky Barrier Rectifier
MBR30150PTG 30.0 AMPS. Schottky Barrier Rectifiers
MBR30200CTG Schottky Barrier Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

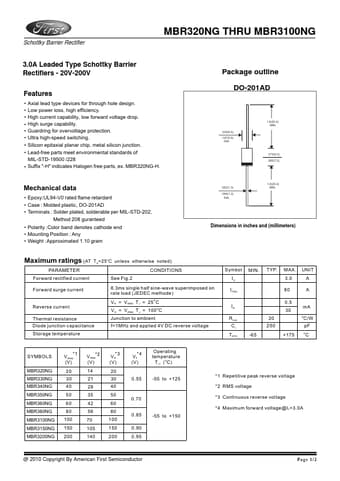

Schottky Barrier Rectifier MBR320NG THRU MBR3100NG 3.0A Leaded Type Schottky Barrier Rectifiers - 20V-200V Features • Axial lead type devices for through hole design. • Low power loss, high efficiency. • High current capability, low forward voltage drop. • High surge capability. • Guardring for overvoltage protection. • Ultra high-speed switching. • Silicon epitaxial planar chip, metal silicon junction. • Lead-free parts meet environmental standards of MIL-STD-19500 /228 • Suffix "-H" indicates Halogen free parts, ex. MBR320NG-H. Package outline DO-201AD .220(5.6) .197(5.0) DIA. 1.0(25.4) MIN. .375(9.5) .285(7.
