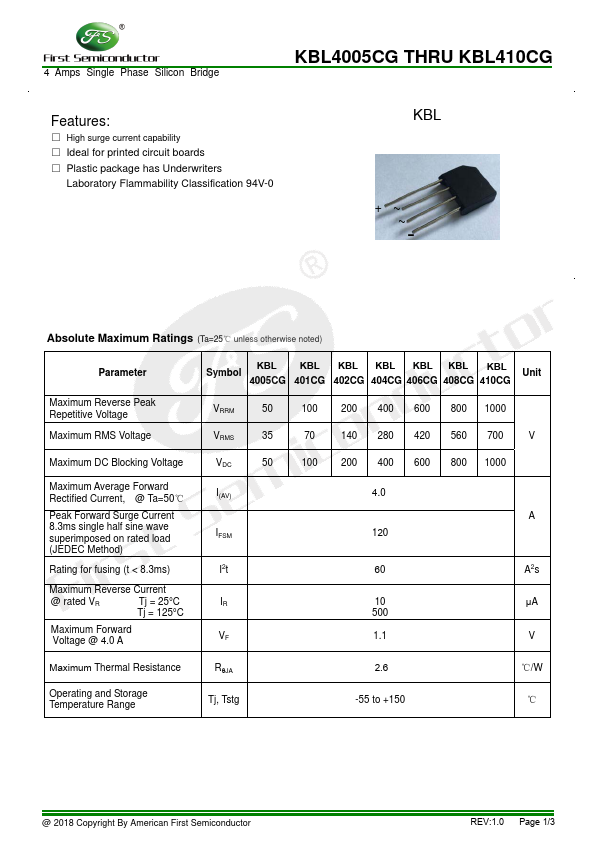

KBL4005CG - 4Amps Single Phase Silicon Bridge

American First Semiconductor

Datasheet Details

Part number	KBL4005CG
Manufacturer	American First Semiconductor
File Size	1.01 MB
Description	4Amps Single Phase Silicon Bridge
Datasheet	KBL4005CG-AmericanFirstSemiconductor.pdf

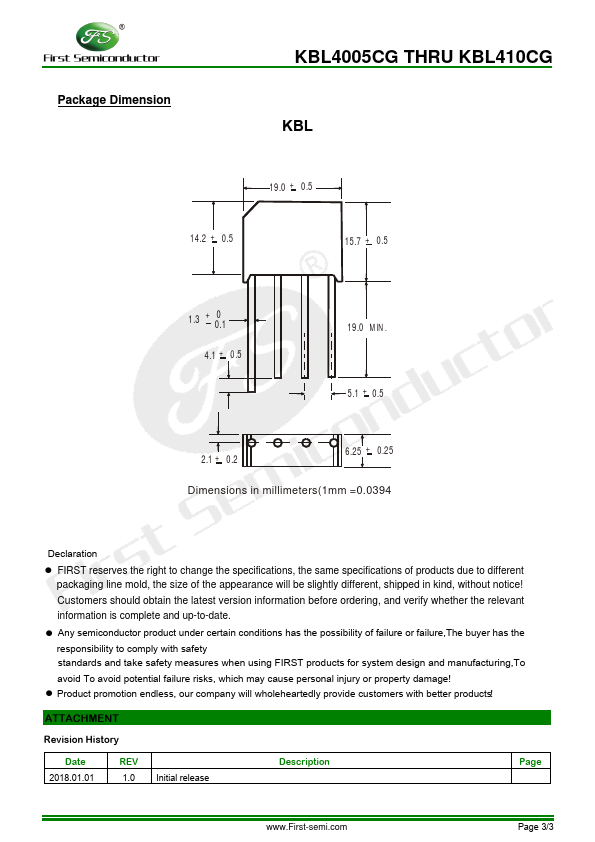

Page www.First-semi.com Page 3/3

High surge current capability.
Ideal for printed circuit boards.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 KBL +~ ~- Absolute Maximum Ratings (Ta=25℃ unless otherwise noted) Parameter Maximum Reverse Peak Repetitive Voltage Maximum RMS Voltage Symbol KBL KBL KBL KBL KBL KBL KBL Unit 4005CG 401CG 402CG 404CG 406CG 408CG 410CG VRRM 50 100 200 400 600 800 1000 VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage.
