EPF81500A, FLEX8000 - Programmable Logic

Altera

The EPF81500A by Altera is a Programmable Logic. Below is the official datasheet preview.

📥 Download Datasheet

EPF81500A Programmable Logic by Altera - Datasheet Preview — Official preview page of the **EPF81500A** Programmable Logic datasheet (Altera).

Datasheet Details

Part number	EPF81500A, FLEX8000
Manufacturer	Altera
File Size	859.68 KB
Description	Programmable Logic
Datasheet	FLEX8000-Altera.pdf
Note	This datasheet PDF includes multiple part numbers: EPF81500A, FLEX8000. Please refer to the document for exact specifications by model.

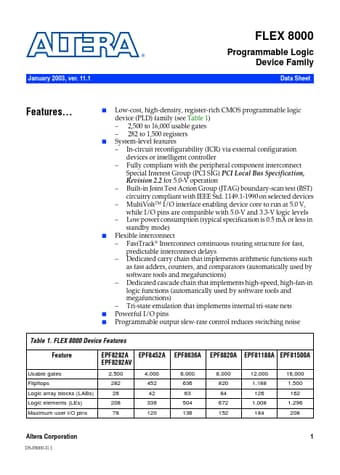

Additional preview pages of the EPF81500A datasheet.

EPF81500A Product details

Description

Altera’s Flexible Logic Element MatriX (FLEX®) family combines the benefits of both erasable programmable logic devices (EPLDs) and fieldprogrammable gate arrays (FPGAs).

Features

Low-cost, high-density, register-rich CMOS programmable logic device (PLD) family (see Table 1).
2,500 to 16,000 usable gates.
282 to 1,500 registers.
System-level features.
In-circuit reconfigurability (ICR) via external configuration devices or intelligent controller.
Fully compliant with the peripheral component interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2 for 5.0-V operation.
Built-in Joint Te.
