EP53A8HQA - 1A PowerSoC Voltage Mode Synchronous PWM Buck

Download the EP53A8HQA datasheet PDF (EP53A8LQA included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 1a powersoc voltage mode synchronous pwm buck.

Description

The EP53A8LQA and EP53A8HQA are 1A PowerSoCs that are AEC-Q100 qualified for automotive applications.

The device integrates MOSFET switches, control, compensation, and the Inductor in an advanced 3mm x 3mm QFN Package.

Features

  • Integrated Inductor Technology.
  • -40°C to +105°C Ambient Temperature Range.
  • AEC-Q100 Qualified for Automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EP53A8LQA-Altera.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EP53A8HQA
Manufacturer Altera
File Size 1.03 MB
Description 1A PowerSoC Voltage Mode Synchronous PWM Buck
Datasheet download datasheet EP53A8HQA Datasheet

📁 Similar Datasheet

  • EP53A8HQI - 1000mA Synchronous Buck Regulator (Enpirion)
  • EP53A8LQI - 1000mA Synchronous Buck Regulator (Enpirion)
  • EP5352Q - (EP5352Q - EP5382Q) 500/600/800mA Synchronous Buck Regulators (Enpirion)
  • EP5358HUI - 500mA Synchronous Buck Regulator (Enpirion)
  • EP5358LUI - 500mA Synchronous Buck Regulator (Enpirion)
  • EP5362Q - (EP5352Q - EP5382Q) 500/600/800mA Synchronous Buck Regulators (Enpirion)
  • EP5368QI - 600mA Synchronous Buck Regulator (Enpirion)
  • EP5382Q - (EP5352Q - EP5382Q) 500/600/800mA Synchronous Buck Regulators (Enpirion)
  • EP5388QI - 800mA Synchronous Buck Regulator (Enpirion)
  • EP53F8QI - Step-Down DC-DC Switching Converter (Intel)
Other Datasheets by Altera
  • EP53A8LQA - 1A PowerSoC Voltage Mode Synchronous PWM Buck
  • EP5358HUA - 600mA PowerSoC Voltage Mode Synchronous PWM Buck
  • EP5358LUA - 600mA PowerSoC Voltage Mode Synchronous PWM Buck

Full PDF Text Transcription

Click to expand full text

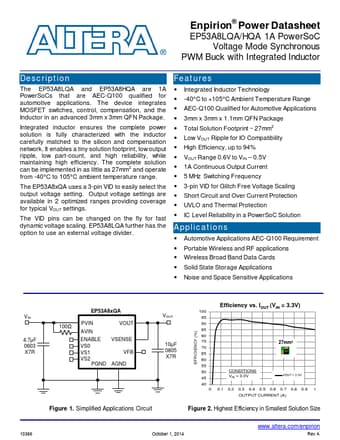

Enpirion® Power Datasheet EP53A8LQA/HQA 1A PowerSoC Voltage Mode Synchronous PWM Buck with Integrated Inductor Description The EP53A8LQA and EP53A8HQA are 1A PowerSoCs that are AEC-Q100 qualified for automotive applications. The device integrates MOSFET switches, control, compensation, and the Inductor in an advanced 3mm x 3mm QFN Package. Integrated inductor ensures the complete power solution is fully characterized with the inductor carefully matched to the silicon and compensation network. It enables a tiny solution footprint, low output ripple, low part-count, and high reliability, while maintaining high efficiency. The complete solution can be implemented in as little as 27mm2 and operate from -40°C to 105°C ambient temperature range.
