SC9017-000, SC9016-000 (SC9016-000 / SC9017-000) Fet Chip Mounting Capacit

SC9017-000 Description

FET Chip Mounting Capacitors (MIS) SC9016 *000, SC9017 *000 .
The FET Chip Mounting Capacitor is an MIS thin film device which features small size and very high Q making it ideal for hybrid microelectronic applic.

SC9017-000 Applications

* at microwave frequencies. The device has a dielectric composed of thermally grown silicon dioxide over which a layer of silicon nitride is deposited. This dielectric possesses a low temperature coefficient of capacitance, very high insulation resistance (typically greater than 1012 ohms), and low di

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SC9017-000, SC9016-000. Please refer to the document for exact specifications by model.

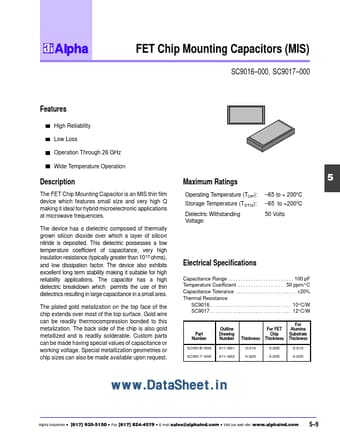

datasheet Preview Page 2

Datasheet Details

Part number
SC9017-000, SC9016-000
Manufacturer
Alpha
File Size
32.72 KB
Datasheet
SC9016-000_Alpha.pdf
Description
(SC9016-000 / SC9017-000) Fet Chip Mounting Capacit
Note
This datasheet PDF includes multiple part numbers: SC9017-000, SC9016-000.
Please refer to the document for exact specifications by model.
