SMV1212-079 - Hyperabrupt Junction Tuning Varactors

This page provides the datasheet information for the SMV1212-079, a member of the SMV Hyperabrupt Junction Tuning Varactors family.

Datasheet Summary

Description

The SMV1211

SMV1215 series of silicon hyperabrupt junction varactor diodes are designed for use in VCOs with low tuning voltage operation.

This family of varactors is characterized for capacitance and resistance over temperature.

SPICE models are provided.

Features

  • s High Capacitance Ratio, C1 V/C4 V = 5 Typ. s Multiple Packages SOT-23, SOD-323, SC-70 and SC-79 s Designed for High Volume Commercial.

📥 Download Datasheet

Datasheet preview – SMV1212-079

Datasheet Details

Part number SMV1212-079
Manufacturer Alpha Industries
File Size 482.23 KB
Description Hyperabrupt Junction Tuning Varactors
Datasheet download datasheet SMV1212-079 Datasheet
Additional preview pages of the SMV1212-079 datasheet.

📁 Similar Datasheet

  • SMV1210 - Multilayer Chip Varistor (SEMIWILL)
  • SMV1213-040LF - 0402 Silicon Hyperabrupt Tuning Varactor Diode (Skyworks Solutions)
  • SMV1204L - OSCILLATOR (Z-Communications)
  • SMV1205A - OSCILLATOR (Z-Communications)
  • SMV1205A-LF - OSCILLATOR (Z-Communications)
  • SMV1231 - Hyperabrupt Junction Tuning Varactors (Skyworks)
  • SMV1232 - Hyperabrupt Junction Tuning Varactors (Skyworks)
  • SMV1233 - Hyperabrupt Junction Tuning Varactors (Skyworks)
  • SMV1234 - Hyperabrupt Junction Tuning Varactors (Skyworks)
  • SMV1235 - Hyperabrupt Junction Tuning Varactors (Skyworks)
Other Datasheets by Alpha Industries

Full PDF Text Transcription

Click to expand full text

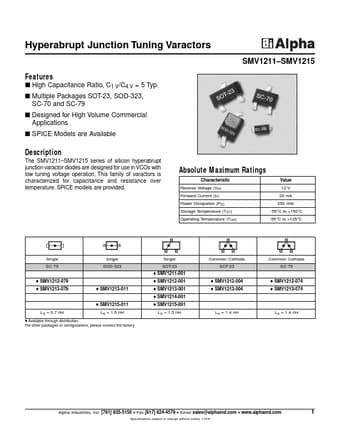

Hyperabrupt Junction Tuning Varactors SMV1211–SMV1215 Features s High Capacitance Ratio, C1 V/C4 V = 5 Typ. s Multiple Packages SOT-23, SOD-323, SC-70 and SC-79 s Designed for High Volume Commercial Applications s SPICE Models are Available Description The SMV1211–SMV1215 series of silicon hyperabrupt junction varactor diodes are designed for use in VCOs with low tuning voltage operation. This family of varactors is characterized for capacitance and resistance over temperature. SPICE models are provided.
