AV101-12 - HIP3 Variable Attenuator 0.80.1.00 GHz

Alpha Industries

AV101-12 Description

HIP3™ Variable Attenuator 0.80 *1.00 GHz AV101-12 .
The AV101-12 is a current controlled variable attenuator from Alpha’s series of HIP3™ components.

AV101-12 Features

* I +50 dBm IP3 Typical I Low Loss 1 dB Typical I Attenuation 30 dB Typical I Good VSWR

AV101-12 Applications

* A monolithic quadrature hybrid is teamed with a silicon PIN diode pair in a plastic surface mount package reducing size and assuring consistency from part to part. Electrical Specifications at 25°C Parameter Frequency Insertion Loss (0 mA Control Current) Attenuation @ 3.0 mA Control Current (900

📥 Download Datasheet

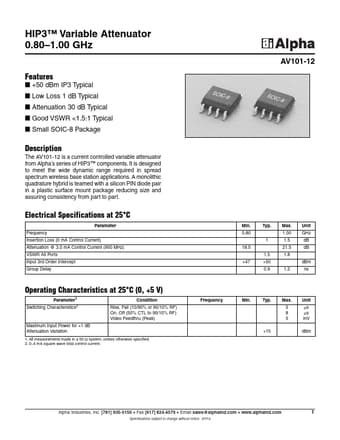

AV101-12 Datasheet Preview — Preview of AV101-12 PDF

Datasheet Details

Part number: AV101-12
Manufacturer: Alpha Industries
File Size: 814.09 KB
Datasheet: AV101-12_AlphaIndustries.pdf
Description: HIP3 Variable Attenuator 0.80.1.00 GHz
