AS004S2-11 - GaAs IC SPDT Switch

AS004S2-11 Description

GaAs IC SPDT Switch Non-Reflective Positive Control DC *4 GHz AS004S2-11 .
The AS004S2-11 is a GaAs IC FET SPDT non-reflective switch with positive control voltage.

AS004S2-11 Features

* Positive Control Voltage
* High Isolation, Non-Reflective
* 8 Lead Hermetic Surface Mount Package

AS004S2-11 Applications

* It exhibits high isolation and low DC power consumption. It also meets MIL-STD-883 screening requirements. -11 ORIENTATION MARK 0.180 (4.57 mm) SQ. MAX. 0.150 (3.81 mm) 0.050 0.400 (10.16 mm) 0.380 (9.65 mm) 0.017 (0.43 mm) 0.013 (0.33 mm) (1.27 mm) TYP. 0.070 (1.78 mm) 0.040 (1.02 mm)

📥 Download Datasheet

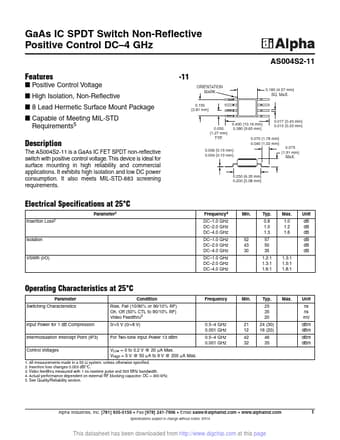

Preview of AS004S2-11 PDF
datasheet Preview Page 2

Datasheet Details

Part number
AS004S2-11
Manufacturer
Alpha Industries
File Size
41.95 KB
Datasheet
AS004S2-11_AlphaIndustries.pdf
Description
GaAs IC SPDT Switch
