AOZ8S207BLS-01 - Single Channel Bidirectional TVS

General Description

The AOZ8S207BLS-01 is a single channel transient voltage suppressor designed to protect data lines such as USB 3.1 and other very high speed date lines from damaging ESD events.

This device incorporates two unidirectional TVS diodes with a back-to-back in a single package.

Key Features

  • ESD protection for high-speed data lines: - IEC 61000-4-2, ESD immunity - Air discharge: ±16 kV - Contact discharge: ±16 kV - IEC61000-4-5 (Lightning) 5 A (8/20 μs) - Human Body Model (HBM) ±8 kV.
  • Bidirectional TVS.
  • Low capacitance: 0.15 pF.
  • Low breakdown voltage: 1.5 V.
  • Low operating voltage: 1 V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ8006 Ultra-Low Capacitance TVS Diode Array ALPHA & OMEGA
AOZ1015 EZBuck 1.5A Synchronous Buck Regulator Alpha and Omega Semiconductors
AOZ1017 EZBuck 3A Simple Regulator Alpha and Omega Semiconductors
AOZ1018 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1019 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ8S203BLS Single Channel Bidirectional TVS Diode
AOZ8S204BL2 Dual Channel Bidirectional 0.15pF TVS Diode
AOZ8S204BLS TVS Diode
AOZ8S204BLS-24 Single Channel Bidirectional TVS Diode
AOZ8S204BLS-30 TVS Diode

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

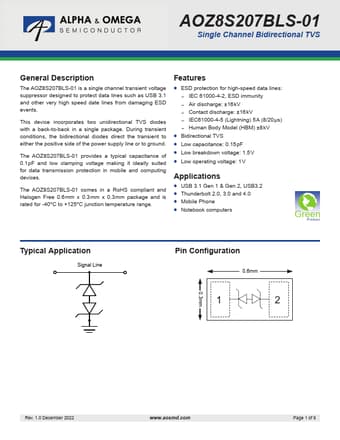

ALPHA & OMEGA SEMICONDUCTOR AOZ8S207BLS-01 Single Channel Bidirectional TVS General Description The AOZ8S207BLS-01 is a single channel transient voltage suppressor designed to protect data lines such as USB 3.1 and other very high speed date lines from damaging ESD events. This device incorporates two unidirectional TVS diodes with a back-to-back in a single package. During transient conditions, the bidirectional diodes direct the transient to either the positive side of the power supply line or to ground. The AOZ8S207BLS-01 provides a typical capacitance of 0.1 pF and low clamping voltage making it ideally suited for data transmission protection in mobile and computing devices. The AOZ8S207BLS-01 comes in a RoHS compliant and Halogen Free 0.6 mm x 0.3 mm x 0.
