AOZ1321DI - Load Switch

General Description

The AOZ1321DI is a P-channel high-side load switch with controlled slew rate.

Three slew rate options are available.

The AOZ1321DI-01L and AOZ1321DI-04L have slew rates of 800us.

Key Features

  • 1.6V to 5.5V input voltage range.
  • Low RDS(ON) (60mΩ typical at 5V).
  • Controlled turn-on slew rate ◗ 800µs (AOZ1321DI-01L, -04L) ◗ 100µs (AOZ1321DI-03L, -06L) ◗ 1µs (AOZ1321DI-02L, -05L).
  • Output discharge function (-03L, -04L, -05L).
  • Low quiescent current (1.0µA typical).
  • Low shutdown current (.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ1015 EZBuck 1.5A Synchronous Buck Regulator Alpha and Omega Semiconductors
AOZ1017 EZBuck 3A Simple Regulator Alpha and Omega Semiconductors
AOZ1018 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1019 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1020 2A Synchronous Buck Regulator Alpha and Omega Semiconductors

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ1320 Load Switch with Controlled Slew Rate
AOZ1324DI 20V Protection Switch
AOZ1325DI Dual Channel Load Switch
AOZ1327DI Protection Switch
AOZ13287DI-01 20V Diode Smart Protection

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

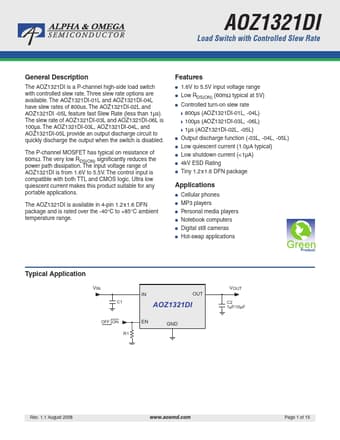

AOZ1321DI Load Switch with Controlled Slew Rate General Description The AOZ1321DI is a P-channel high-side load switch with controlled slew rate. Three slew rate options are available. The AOZ1321DI-01L and AOZ1321DI-04L have slew rates of 800us. The AOZ1321DI-02L and AOZ1321DI -05L feature fast Slew Rate (less than 1µs). The slew rate of AOZ1321DI-03L and AOZ1321DI-06L is 100µs. The AOZ1321DI-03L, AOZ1321DI-04L, and AOZ1321DI-05L provide an output discharge circuit to quickly discharge the output when the switch is disabled. The P-channel MOSFET has typical on resistance of 60mΩ. The very low RDS(ON) significantly reduces the power path dissipation. The input voltage range of AOZ1321DI is from 1.6V to 5.5V. The control input is compatible with both TTL and CMOS logic.
