AOZ1268QI-02 - 24V/10A Synchronous Regulator

General Description

The AOZ1268-02 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 24V.

The device is capable of supplying 10A of continuous output current with an output voltage adjustable down to 0.8V (±1.0%).

Key Features

  • multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, as well as thermal shutdown. The AOZ1268-02 is available in a 4mm x 4mm QFN-23L package and is rated over a -40°C to +85°C ambient temperature range. Features.
  • Wide input voltage range.
  • 2.7V to 24V.
  • 10A continuous output current.
  • Output voltage adjustable down to 0.8V (±1.0%).
  • Low RDS(ON) internal NFETs.
  • 28.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOZ1015 EZBuck 1.5A Synchronous Buck Regulator Alpha and Omega Semiconductors
AOZ1017 EZBuck 3A Simple Regulator Alpha and Omega Semiconductors
AOZ1018 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1019 EZBuck 2A Simple Regulator Alpha and Omega Semiconductors
AOZ1020 2A Synchronous Buck Regulator Alpha and Omega Semiconductors

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOZ1268QI-01 28V/10A Synchronous EZBuck Regulator
AOZ1267QI-01 28V/8A Synchronous Regulator
AOZ1267QI-02 24V/8A Synchronous Regulator
AOZ1269AQI 28V/12A Synchronous Regulator
AOZ1269QI-02 28V/12A Synchronous Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

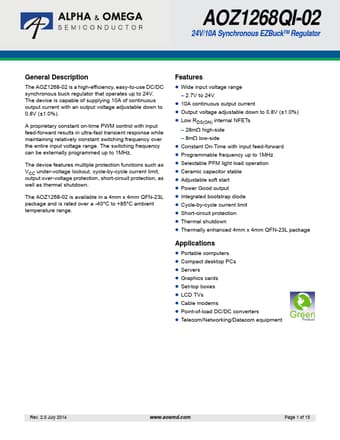

AOZ1268QI-02 24V/10A Synchronous EZBuckTM Regulator General Description The AOZ1268-02 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 24V. The device is capable of supplying 10A of continuous output current with an output voltage adjustable down to 0.8V (±1.0%). A proprietary constant on-time PWM control with input feed-forward results in ultra-fast transient response while maintaining relatively constant switching frequency over the entire input voltage range. The switching frequency can be externally programmed up to 1MHz. The device features multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, as well as thermal shutdown.
