AOT125A60L - N-Channel Power Transistor

General Description

Proprietary aMOS5TM technology Low RDS(ON) Optimized switching parameters for better EMI performance Enhanced body diode for robustness and fast reverse recovery Applications SMPS with PFC,Flyback and LLC topologies Micro inverter with DC/A

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOT128A Transistor optocoupler ETC
AOT128B Transistor optocoupler ETC
AOT128x Transistor optocoupler ETC
AOT12N30 N-Channel MOSFET INCHANGE
AOT12N40 N-Channel MOSFET INCHANGE

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOT12N30 N-Channel MOSFET
AOT12N40 N-Channel MOSFET
AOT12N50 12A N-Channel MOSFET
AOT12N60 12A N-Channel MOSFET
AOT12N60FD 12A N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

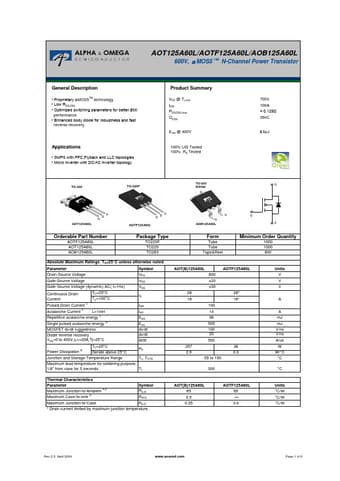

AOT125A60L/AOTF125A60L/AOB125A60L 600V, a MOS5 TM N-Channel Power Transistor General Description • Proprietary aMOS5TM technology • Low RDS(ON) • Optimized switching parameters for better EMI performance • Enhanced body diode for robustness and fast reverse recovery Applications • SMPS with PFC,Flyback and LLC topologies • Micro inverter with DC/AC inverter topology TO-220 TO-220F Product Summary VDS @ Tj,max IDM RDS(ON),max Qg,typ Eoss @ 400V 100% UIS Tested 100% Rg Tested TO-263 D2PAK D 700V 100A < 0.125Ω 39nC 6.
