AONY36356 30V Dual Asymmetric N-Channel MOSFET

AONY36356 Description

AONY36356 30V Dual Asymmetric N-Channel MOSFET General .
Trench Power MOSFET technology. Low RDS(ON) at 4. Low Gate Charge. High Current Capability. RoHS.

AONY36356 Applications

* DC/DC Converters in Computer
* See Note I Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) Q1 Q2 30V 30V 32A 32A < 6.1mΩ < 3.8mΩ < 9.6mΩ < 4.7mΩ 100% UIS Tested 100% Rg Tested Top View DFN 5X6B S2 PIN1 Bottom View S2 G2 S2 (S1/D2) D1 G1 D1

📥 Download Datasheet

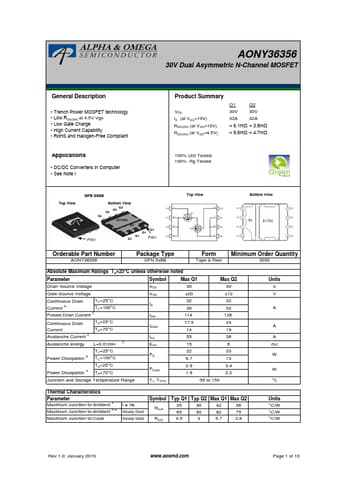

Preview of AONY36356 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AONY36356
Manufacturer
Alpha & Omega Semiconductors
File Size
593.24 KB
Datasheet
AONY36356-AlphaOmegaSemiconductors.pdf
Description
30V Dual Asymmetric N-Channel MOSFET
