AONS36333 - 30V N-Channel MOSFET

Product Overview

📥 Download Datasheet

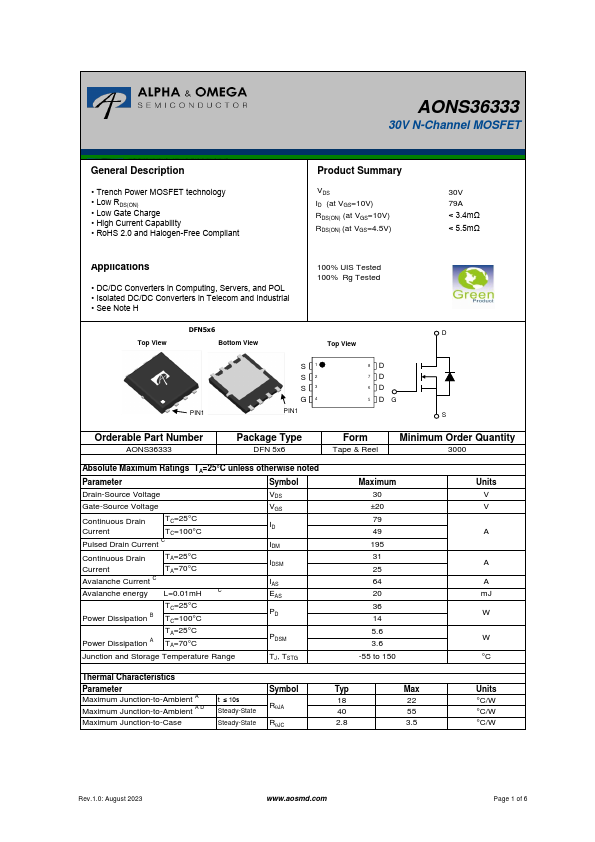

Datasheet preview – AONS36333

Datasheet Details

Part number AONS36333
Manufacturer Alpha & Omega Semiconductors
File Size 419.67 KB
Description 30V N-Channel MOSFET
Datasheet download datasheet AONS36333 Datasheet

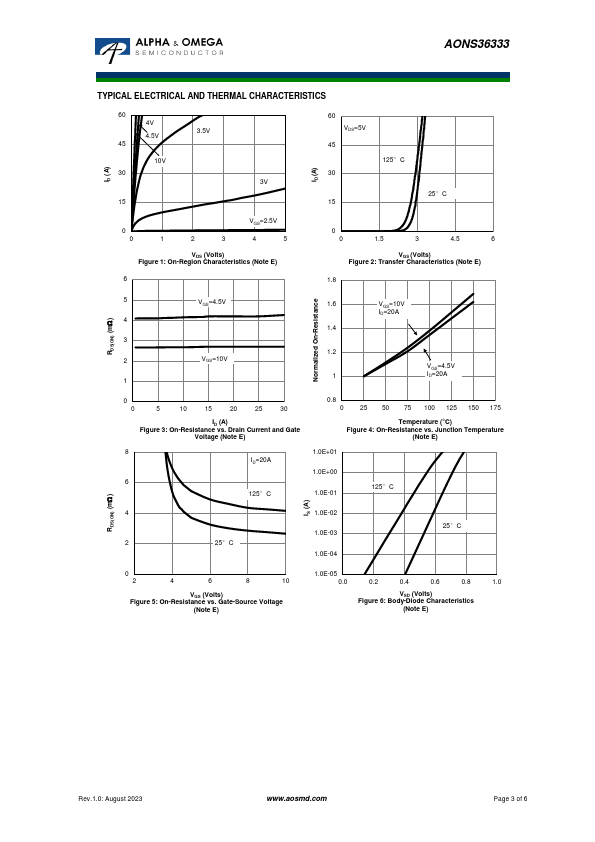

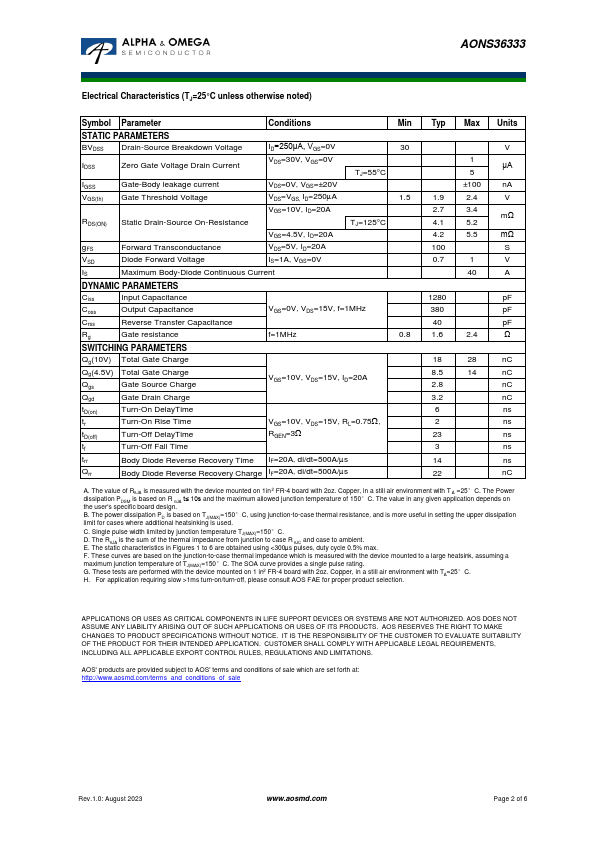

Additional preview pages of the AONS36333 datasheet.

Product details

Description

Trench Power MOSFET technology Low RDS(ON) Low Gate Charge High Current Capability RoHS 2.0 and Halogen-Free Compliant Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) 30V 79A < 3.4mΩ < 5.5mΩ Applications DC/DC Converters in Computing, Servers, and POL Isolated DC/DC Converters in Telecom and Industrial See Note H 100% UIS Tested 100% Rg Tested DFN5x6 D Top View Bottom View Top
