AON7466 - 30V N-Channel MOSFET

AON7466 Description

AON7466 30V N-Channel MOSFET General .
Product Summary. The AON7466 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).

AON7466 Applications

* VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V)
* RoHS and Halogen-Free Compliant 100% UIS Tested 100% Rg Tested 30V 30A < 7.5mW < 10.5mW DFN 3x3 EP Top View Bottom View Top View S1 S2 S3 G4 Pin 1 Pin 1 Absolute Maximum Ratings TA=25°C unless otherwise noted Pa

📥 Download Datasheet

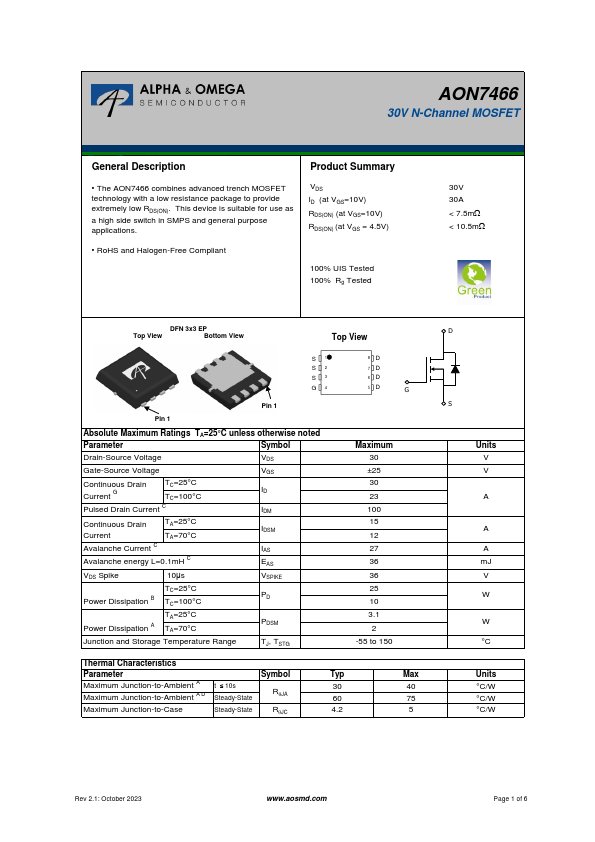

Preview of AON7466 PDF

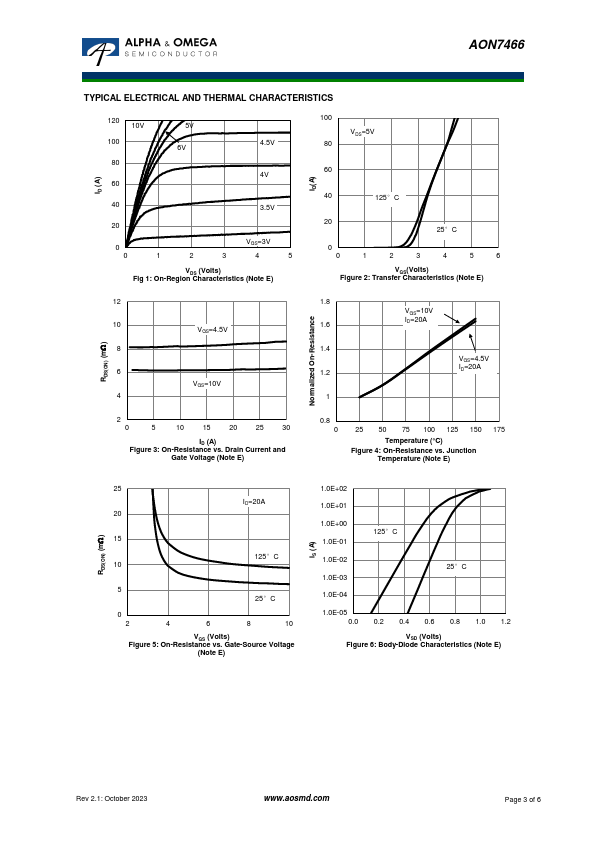

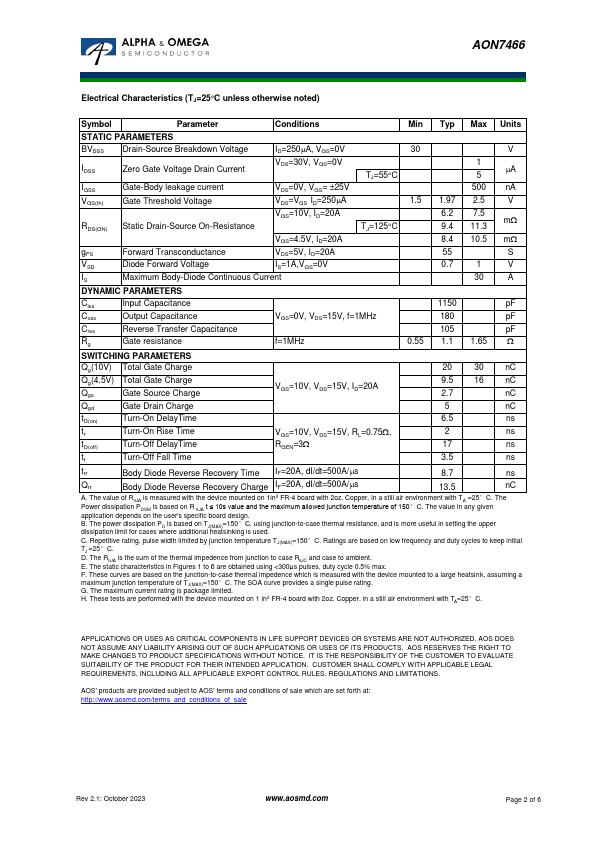

datasheet Preview Page 2 datasheet Preview Page 3
