AON7244 - 60V N-Channel MOSFET

Alpha & Omega Semiconductors

General Description

The AON7244 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON).

This device is ideal for boost converters and synchronous rectifiers for consumer, telecom, industrial power supplies and LED backlighting.

📥 Download Datasheet

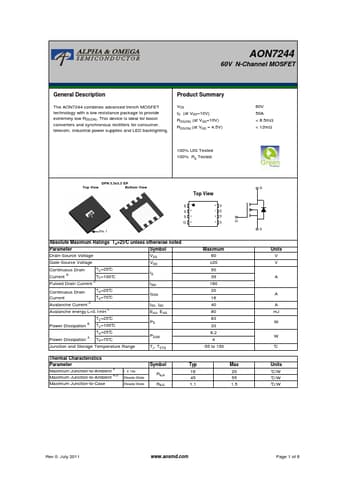

AON7244 60v n-channel mosfet by Alpha & Omega Semiconductors - Datasheet Preview

Datasheet Details

Part number	AON7244
Manufacturer	Alpha & Omega Semiconductors
File Size	273.32 KB
Description	60V N-Channel MOSFET
Datasheet	AON7244 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
AON7202	N-Channel 30V MOSFET	VBsemi
AON7405	P-Channel 30V MOSFET	VBsemi
AON7446	N-Channel MOSFET	VBsemi
AON7502	N-Channel 30V MOSFET	VBsemi
AON7702A	N-Channel 30V MOSFET	VBsemi

Other Datasheets by Alpha & Omega Semiconductors

Part Number	Description
AON7240	40V N-Channel MOSFET
AON7242	40V N-Channel MOSFET
AON7246	60V N-Channel MOSFET
AON7200	30V N-Channel MOSFET
AON7202	30V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

AON7244 60V N-Channel MOSFET General Description The AON7244 combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is ideal for boost converters and synchronous rectifiers for consumer, telecom, industrial power supplies and LED backlighting. Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 4.5V) 100% UIS Tested 100% Rg Tested 60V 50A < 8.5mΩ < 12mΩ DFN 3.3x3.
