AON6452 N-Channel MOSFET

Alpha & Omega Semiconductors

Description

AON6452 100V N-Channel MOSFET SDMOS TM General .
The AON6452 is fabricated with SDMOSTM trench technology that combines excellent RDS(ON) with low gate charge.

📥 Download Datasheet

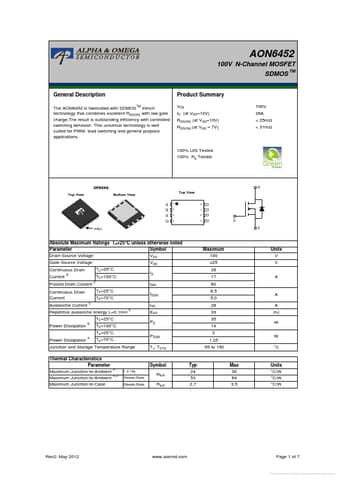

AON6452 Datasheet Preview — Preview of AON6452 PDF

Datasheet Specifications

Part number: AON6452
Manufacturer: Alpha & Omega Semiconductors
File Size: 422.18 KB
Datasheet: AON6452_AlphaOmegaSemiconductors.pdf
Description: N-Channel MOSFET

Applications

* Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS = 7V) 100V 26A < 25mΩ < 31mΩ 100% UIS Tested 100% Rg Tested DFN5X6 Top View Bottom View 1 2 3 4 D Top View 8 7 6 5 G S PIN1 Absolute Maximum Ratings TA=25°C unless otherwise noted Symbol Parameter Drain-Source Voltage
