AON6366E - 30V N-Channel MOSFET

AON6366E Description

AON6366E 30V N-Channel AlphaMOS General .
Trench Power AlphaMOS (αMOS LV) technology. Low RDS(ON). Optimized for load switch. High Current Capability.

AON6366E Applications

* NB Battery Pack Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) RDS(ON) (at VGS=4.5V) Typical ESD protection 100% UIS Tested 100% Rg Tested 30V 34A < 3.7mΩ < 5.2mΩ HBM Class 2 Top View DFN5X6 Bottom View PIN1 PIN1 Top View 1 8 2 7 3 6 4 5 D G S Orderable Part Num

📥 Download Datasheet

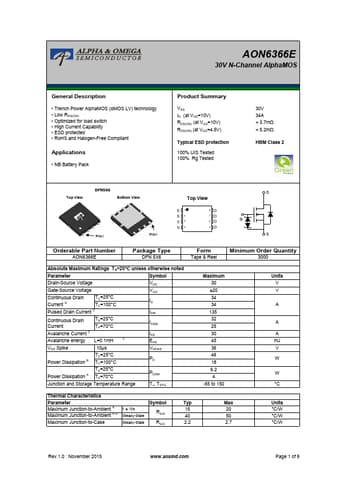

Preview of AON6366E PDF
datasheet Preview Page 2 datasheet Preview Page 3
