AOI2606 60V N-Channel MOSFET

AOI2606 Description

AOD2606/AOI2606 60V N-Channel MOSFET General .
Trench Power MV MOSFET technology. Low RDS(ON). Low Gate Charge. Optimized for fast-switching applications Produ.

AOI2606 Applications

* Product Summary VDS ID (at VGS=10V) RDS(ON) (at VGS=10V) 60V 46A < 6.8mΩ Applications
* Synchronous Rectification in DC/DC and AC/DC Converters
* Industrial and Motor Drive applications 100% UIS Tested 100% Rg Tested TO-252 TO-251A DPAK IPAK D Top View Bottom View Top Vie

📥 Download Datasheet

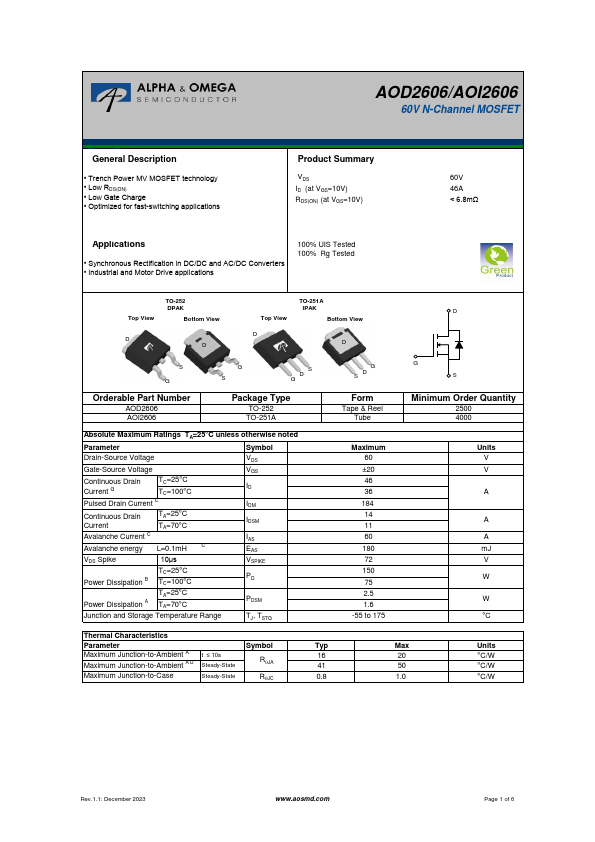

Preview of AOI2606 PDF
datasheet Preview Page 2 datasheet Preview Page 3
