AOD380A60 - 600V N-Channel Power Transistor

General Description

Proprietary aMOS5TM technology Low RDS(ON) Optimized switching parameters for better EMI performance Enhanced body diode for robustness and fast reverse recovery Applications SMPS with PFC, Flyback and LLC topologies Silver ATX ,adapter, TV

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AOD3N40 N-Channel MOSFET Freescale
AOD3N40 N-Channel MOSFET INCHANGE
AOD3N50 N-Channel MOSFET Freescale
AOD3N50 N-Channel MOSFET INCHANGE
AOD3N60 N-Channel MOSFET INCHANGE

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AOD32334C 30V N-Channel MOSFET
AOD360A70 700V N-Channel Power Transistor
AOD3C60 N-Channel MOSFET
AOD3N40 N-Channel MOSFET
AOD3N50 500V 3A N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

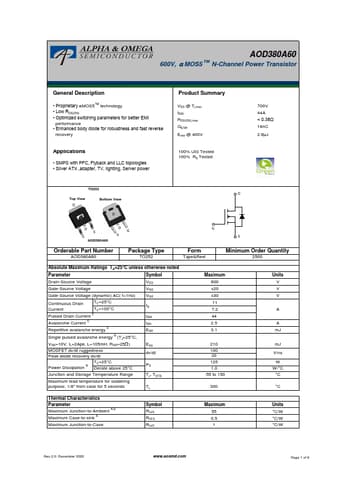

AOD380A60 600V, a MOS5 TM N-Channel Power Transistor General Description • Proprietary aMOS5TM technology • Low RDS(ON) • Optimized switching parameters for better EMI performance • Enhanced body diode for robustness and fast reverse recovery Applications • SMPS with PFC, Flyback and LLC topologies • Silver ATX ,adapter, TV, lighting, Server power Product Summary VDS @ Tj,max IDM RDS(ON),max Qg,typ Eoss @ 400V 100% UIS Tested 100% Rg Tested 700V 44A < 0.38Ω 18nC 2.
