AO4413A - P-Channel FET

General Description

www.DataSheet4U.com provide

Key Features

  • VDS (V) = -30V ID = -15A (V GS = -10V) RDS(ON) < 7mΩ (VGS = -20V) RDS(ON) < 8.5mΩ (VGS = -10V) The AO4413A uses advanced trench technology to excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AO4410 N-Channel MOSFET VBsemi
AO4414 N-Channel 20V MOSFET VBsemi
AO4415 P-Channel MOSFET Freescale
AO4415 P-Channel 30V MOSFET VBsemi
AO4401 P-Channel MOSFET Freescale

Other Datasheets by Alpha & Omega Semiconductors

Part Number Description
AO4413 30V P-Channel MOSFET
AO4410 30V N-Channel MOSFET
AO4411 30V P-Channel MOSFET
AO4412 N-Channel FET
AO4414 N-Channel FET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

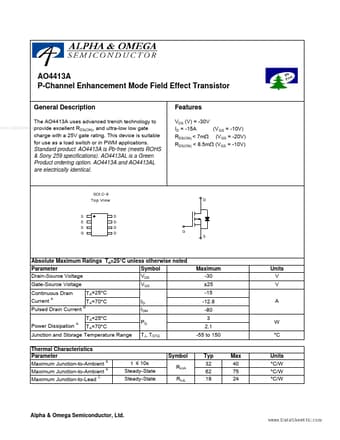

AO4413A P-Channel Enhancement Mode Field Effect Transistor General Description www.DataSheet4U.com provide Features VDS (V) = -30V ID = -15A (V GS = -10V) RDS(ON) < 7mΩ (VGS = -20V) RDS(ON) < 8.5mΩ (VGS = -10V) The AO4413A uses advanced trench technology to excellent RDS(ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications. Standard product AO4413A is Pb-free (meets ROHS & Sony 259 specifications). AO4413AL is a Green Product ordering option. AO4413A and AO4413AL are electrically identical.
