LRC10 - Low Resistance Chip Inductors

Name: LRC10
SKU: LRC10-694406

Allied Components International

The LRC10 by Allied Components International is a Low Resistance Chip Inductors. Below is the official datasheet preview.

Datasheet Details

Part number	LRC10
Manufacturer	Allied Components International
File Size	705.24 KB
Description	Low Resistance Chip Inductors
Datasheet	LRC10_AlliedComponentsInternational.pdf

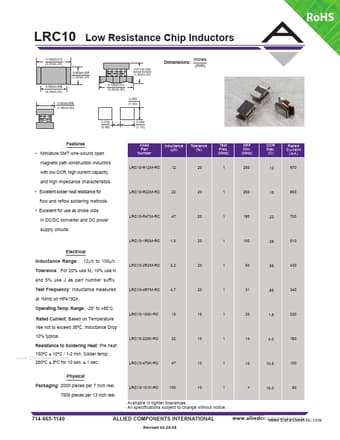

Additional preview pages of the LRC10 datasheet.

Miniature SMT wire-wound open magnetic path construction inductors with low DCR, high current capacity and high impedance characteristics.
Excellent solder heat resistance for flow and reflow soldering methods.
Excellent for use as choke coils in DC/DC converter and DC power supply circuits. Allied Part Number LRC10-R12M-RC Inductance (µh) Tolerance (%) Test Freq. (MHz) 1 SRF Min. (MHz) 250 DCR Max. (Ω ) .12 Rated Current (mA) 970 .12 20 LRC10-R22M-RC .22.
