AEE19-4418 Datasheet - Allied Components International

AEE19-4418-AlliedComponentsInternational.pdf

AEE19-4418 Datasheet Preview — Preview of AEE19-4418 PDF

Datasheet Details

Part number:

AEE19-4418

Manufacturer:

Allied Components International

File Size:

1.00 MB

Description:

Ee19 transformer.

AEE19-4418, EE19 Transformer

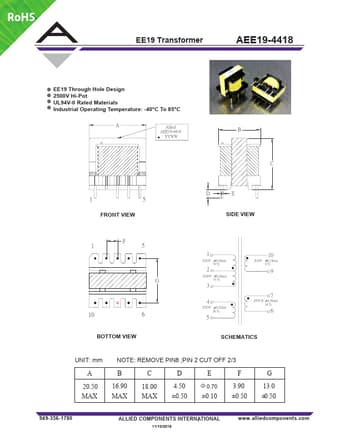

RoHS EE19 Transformer AEE19-4418 EE19 Through Hole Design 2500V Hi-Pot UL94V-0 Rated Materials Industrial Operating Temperature: -40°C To 85°C A Allied AEE19-4418 YYWW B C 1 5 FRONT VIEW D E SIDE VIEW F 1 5 G 10 6 BOTTOM VIEW 1 2UEW 0.20mm 74 Ts 2 2UEW 0.20mm 74 Ts 3 4 2UEW 0.22mm 16 Ts 5 10 2UEW 0.18mm 8 Ts 9 7 STW-B 0.30mm 18 Ts 6 SCHEMATICS UNIT: mm NOTE: REMOVE PIN8 ;PIN 2 CUT OFF 2/3 A B C D E F 20.50 MAX 16.90 MAX 18.00 MAX 4.50 ±0.50 Φ0.70 ±0.10 3.90 ±
