AS6C2008 256K x 8 BIT LOW POWER CMOS SRAM

Alliance Semiconductor

AS6C2008 Description

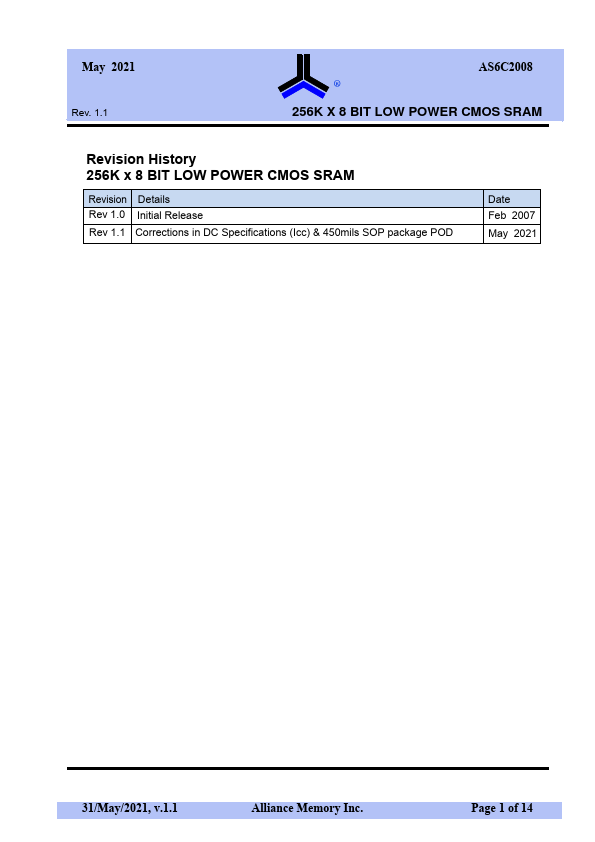

May 2021 Rev.1.1 AS6C2008 ® 256K X 8 BIT LOW POWER CMOS SRAM Revision History 256K x 8 BIT LOW POWER CMOS SRAM Revision Details Rev 1.0 Initial Rel.

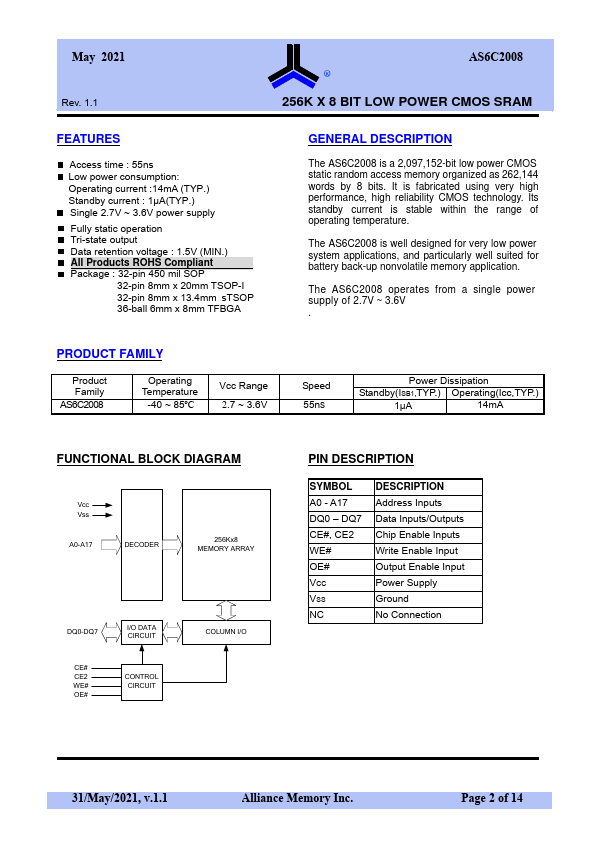

The AS6C2008 is a 2,097,152-bit low power CMOS static random access memory organized as 262,144 words by 8 bits.

AS6C2008 Features

* Access time : 55ns Low power consumption: Operating current :14mA (TYP. ) Standby current : 1µA(TYP. ) Single 2.7V ~ 3.6V power supply Fully static operation Tri-state output Data retention voltage : 1.5V (MIN. ) All Products ROHS Compliant Package : 32-pin 450 mil SOP 32-pin 8mm x 20mm TSOP-I 32-pin 8

AS6C2008 Applications

* and particularly well suited for battery back-up nonvolatile memory application. The AS6C2008 operates from a single power supply of 2.7V ~ 3.6V . PRODUCT FAMILY Product Family AS6C2008 Operating Temperature -40 ~ 85ºC Vcc Range 2.7 ~ 3.6V Speed 55ns Power Dissipation Standby(ISB1,TYP. ) Oper

📥 Download Datasheet

AS6C2008 Datasheet Preview — Preview of AS6C2008 PDF

Datasheet Details

Part number: AS6C2008
Manufacturer: Alliance Semiconductor
File Size: 3.03 MB
Datasheet: AS6C2008_AllianceSemiconductor.pdf
Description: 256K x 8 BIT LOW POWER CMOS SRAM
