ACS770 - High Precision Linear Current Sensor

Product Overview

Allegro

Part number	ACS770
Manufacturer	Allegro
File Size	1.94 MB
Description	High Precision Linear Current Sensor
Datasheet	ACS770 Datasheet
Note	This datasheet PDF includes multiple part numbers: ACS770, ACS770LCB-050B-PFF-T. Please refer to the document for exact specifications by model.

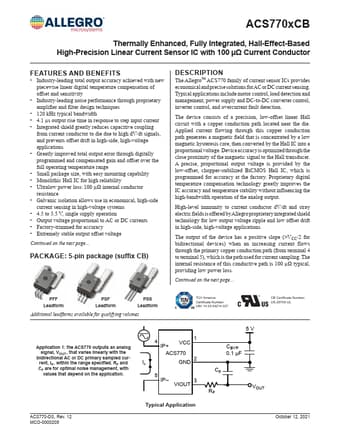

Additional preview pages of the ACS770 datasheet.

The Allegro™ ACS770 family of current sensor ICs provides economical and precise solutions forAC or DC current sensing.

Industry-leading total output accuracy achieved with new piecewise linear digital temperature compensation of offset and sensitivity.
Industry-leading noise performance through proprietary amplifier and filter design techniques.
120 kHz typical bandwidth.
4.1 µs output rise time in response to step input current.
Integrated shield greatly reduces capacitive coupling from current conductor to die due to high dV/dt signals, and prevents offset drift in.
