A80601-1, A80601 High Power LED Driver

A80601-1 Description

A80601 and A80601-1 High Power LED Driver with Pre-Emptive Boost for Ultra-High Dimming Ratio and Low Output Ripple .
The A80601 is a multi-output LED driver for automotive applications such as exterior lighting, heads-up display, and mid-size LCD backlighting.

A80601-1 Features

* Automotive AEC-Q100 qualified
* Enhanced fault handling for ASIL B system compliance
* Wide input voltage range of 4.5 to 40 V for start/stop, cold crank, and load dump requirements
* Operate in Boost or SEPIC mode for flexible output
* Gate driver for exter

A80601-1 Applications

* such as exterior lighting, heads-up display, and mid-size LCD backlighting. It implements a current-mode boost/SEPIC converter with gate driver for external N-channel MOSFET. The A80601 provides four integrated current sinks driving up to 210 mA per string. Multiple sinks can be paralleled together

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: A80601-1, A80601. Please refer to the document for exact specifications by model.

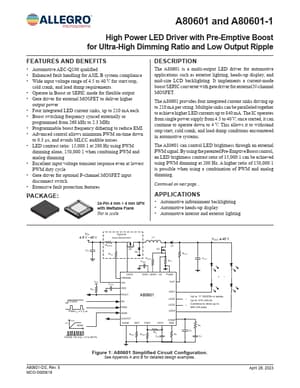

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A80601-1, A80601
Manufacturer
Allegro
File Size
5.11 MB
Datasheet
A80601-Allegro.pdf
Description
High Power LED Driver
Note
This datasheet PDF includes multiple part numbers: A80601-1, A80601.
Please refer to the document for exact specifications by model.
