A5929 Automotive Full-Bridge MOSFET Driver

A5929 Description

A5929 Automotive Full-Bridge MOSFET Driver .
The A5929 is a full-bridge controller for use with n-channel external power MOSFETs and is specifically designed for automotive applications.

A5929 Features

* High current Full-Bridge gate drive for n-channel MOSFETs
* Cross-conduction protection
* 5.5 V to 50 V Supply Voltage Range
* Motor phase short to supply and short to ground detection
* Undervoltage, overtemperature monitors
* Low Current Sleep Mode

A5929 Applications

* A unique charge pump regulator provides full (>10 V) gate drive at battery voltages down to 7 V and allows the A5929 to operate with reduced gate drive at battery voltages down to 5.5 V. A bootstrap capacitor is used to provide the above battery supply voltage required for n-channel MOSFETs. One lo

📥 Download Datasheet

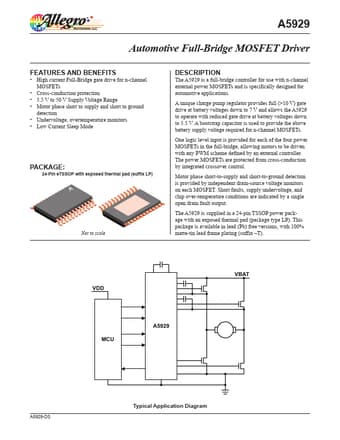

Preview of A5929 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A5929
Manufacturer
Allegro
File Size
529.26 KB
Datasheet
A5929-Allegro.pdf
Description
Automotive Full-Bridge MOSFET Driver
