A3982 DMOS Stepper Motor Driver

A3982 Description

A3982 DMOS Stepper Motor Driver with Translator .
The A3982 is a complete stepper motor driver with built-in translator for easy operation.

A3982 Features

* ▪ Low RDS(on) outputs ▪ Automatic current decay mode detection/selection ▪ Mixed and Slow current decay modes ▪ Synchronous rectification for low power dissipation ▪ Internal UVLO and thermal shutdown circuitry ▪ Crossover-current protection PACKAGE: 24 pin SOICW with internally fused leads (suffix

A3982 Applications

* where a complex microprocessor is unavailable or is overburdened. The chopping control in the A3982 automatically selects the current decay mode (Slow or Mixed). When a signal occurs at the STEP input pin, the A3982 determines if that step results in a higher or lower current in each of the motor ph

📥 Download Datasheet

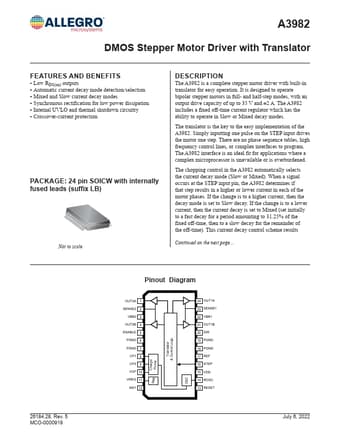

Preview of A3982 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A3982
Manufacturer
Allegro
File Size
606.61 KB
Datasheet
A3982-Allegro.pdf
Description
DMOS Stepper Motor Driver
