A3362 - HALL-EFFECT SWITCHES

Download the A3362 datasheet PDF. This datasheet also covers the A3361 variant, as both devices belong to the same hall-effect switches family and are provided as variant models within a single manufacturer datasheet.

Features

  • I Internal Current Regulator for 2-Wire Operation I Resistant to Physical Stress I Superior Temperature Stability I Operation From Unregulated Supply I Solid-State Reliability I Small Size Always order by complete part number: the prefix 'A' + the basic four-digit part number + a suffix to indicate operating temperature range (E) + a two-letter suffix to indicate package style, e. g. , A3361ELH . 3361 AND 3362 2-WIRE,.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (A3361-Allegro.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number A3362
Manufacturer Allegro
File Size 188.71 KB
Description HALL-EFFECT SWITCHES
Datasheet download datasheet A3362 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
A33 Cascadable Amplifier Tyco Electronics
A33 Quad Core Tablet Processor Allwinner Technology
A33-1 Cascadable Amplifier Tyco Electronics
A3355 HIGH FREQUENCY RF TRANSISTOR AiT Semiconductor
A3356 MICROWAVE LOW NOISE RF TRANSISTOR AiT Semiconductor

Other Datasheets by Allegro

Part Number Description
A3361 HALL-EFFECT SWITCHES
A33002 Precision Angle Sensor
A33003 Precision Angle Sensor
A33230 3D Hall-Effect Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

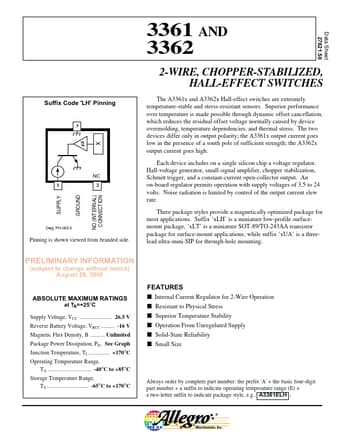

Data Sheet 27621.50 X 3361 AND 3362 Suffix Code 'LH' Pinning 3 NC 1 2 SUPPLY GROUND NO (INTERNAL) CONNECTION Dwg. PH-003-5 Pinning is shown viewed from branded side. 2-WIRE, CHOPPER-STABILIZED, HALL-EFFECT SWITCHES The A3361x and A3362x Hall-effect switches are extremely temperature-stable and stress-resistant sensors. Superior performance over temperature is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress. The two devices differ only in output polarity; the A3361x output current goes low in the presence of a south pole of sufficient strength; the A3362x output current goes high.
