A3185 - Protected Quad Driver

A3185 Description

A3185, A3187, A3188, and A3189 Protected Quad Driver with Fault Detection and Sleep Mode Discontinued Product This device is no longer in production..

A3185 Features

* Symmetrical Switch Points
* Superior Temperature Stability
* Operation From Unregulated Supply
* Open-Collector 25 mA Output
* Reverse Battery Protection
* Activate With Small, Commercially Available Permanent Magnets
* Solid-State Reliability
* Small Size
* Res

A3185 Applications

* Samples are no longer available. Date of status change: October 31, 2005 Recommended Substitutions: For existing customer transition, and for new customers or new applications:
* For the A3185, refer to the A1225
* For the A3187, refer to the A1227
* For the A3188, refer to

📥 Download Datasheet

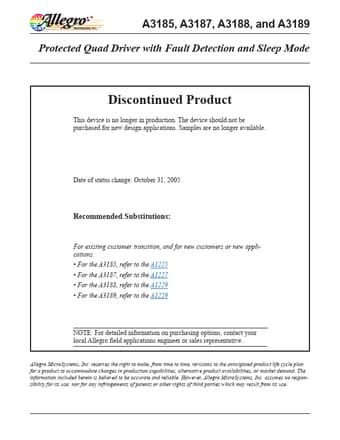

Preview of A3185 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A3185
Manufacturer
Allegro
File Size
662.96 KB
Datasheet
A3185-Allegro.pdf
Description
Protected Quad Driver
