A17201 Two-Wire AC-Coupled Differential Sensor

A17201 Description

A17201 Two-Wire AC-Coupled Differential Sensor IC with Integrated Filter Capacitor .
The A17201 is an AC-coupled Hall-effect sensor IC which includes monolithic integrated circuits that switch in response to changing differential magne.

A17201 Features

* Integrated tracking capacitor
* Integrated capacitor reduces requirements for external EMI protection components (UB package)
* Used for sensing motion of ring magnet or ferrous targets
* Wide operating temperature range
* Operation with magnetic input signa

A17201 Applications

* The device packages have an operating ambient temperature range of
* 40°C to 150°C, and are provided in a 3-pin plastic SIP (suffix UA) or a 2-pin plastic SIP (suffix UB). Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes. The regulated current output is configured for

📥 Download Datasheet

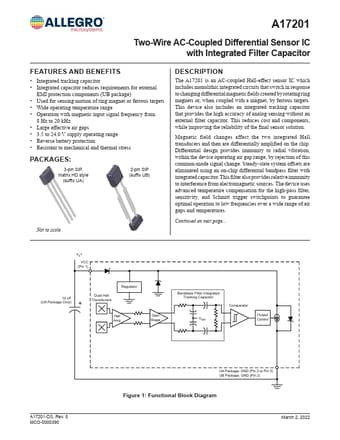

Preview of A17201 PDF
